2-794657-0
ObsoleteTE Connectivity AMP Connectors

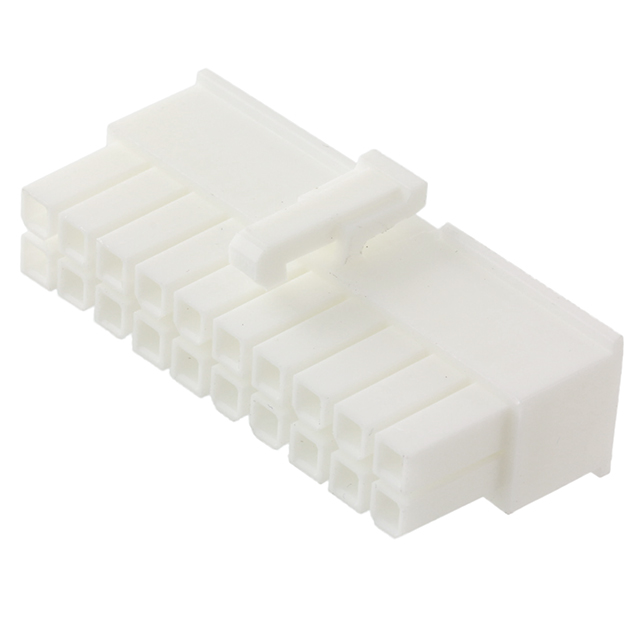

CONN RCPT HSG 20POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-794657-0
ObsoleteTE Connectivity AMP Connectors
CONN RCPT HSG 20POS 4.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-794657-0 | 794657 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 20 | 2 - 24 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 4.2 mm | 4.2 mm |
| Pitch [x] | 0.165 in | 0.165 in |
| Row Spacing | 4.2 mm | 4.2 mm |
| Row Spacing | 0.165 in | 0.165 in |
794657 Series
CONN RCPT HSG 20POS 4.20MM
| Part | Mounting Type | Color | Number of Positions | Note | Pitch [x] | Pitch [x] | Connector Type | Number of Rows | Contact Termination | Row Spacing | Row Spacing | Fastening Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-794657-0 | Free Hanging (In-Line) | Natural | 20 | Contacts Not Included | 4.2 mm | 0.165 in | Receptacle | 2 | Crimp | 4.2 mm | 0.165 in | Latch Lock | Female Socket |
TE Connectivity AMP Connectors 2-794657-2 | Free Hanging (In-Line) | Natural | 22 positions | Contacts Not Included | 4.2 mm | 0.165 in | Receptacle | 2 | Crimp | 4.2 mm | 0.165 in | Latch Lock | Female Socket |
TE Connectivity AMP Connectors 794657-2 | Free Hanging (In-Line) | Natural | 2 | Contacts Not Included | Receptacle | 2 | Crimp | 4.2 mm | 0.165 in | Latch Lock | Female Socket | ||
TE Connectivity AMP Connectors 794657-4 | Free Hanging (In-Line) | Natural | 4 | Contacts Not Included | 4.2 mm | 0.165 in | Receptacle | 2 | Crimp | 4.2 mm | 0.165 in | Latch Lock | Female Socket |
TE Connectivity AMP Connectors 1-794657-0 | Free Hanging (In-Line) | Natural | 10 | Contacts Not Included | 4.2 mm | 0.165 in | Receptacle | 2 | Crimp | 4.2 mm | 0.165 in | Latch Lock | Female Socket |
TE Connectivity AMP Connectors 794657-6 | Free Hanging (In-Line) | Natural | 6 | Contacts Not Included | 4.2 mm | 0.165 in | Receptacle | 2 | Crimp | 4.2 mm | 0.165 in | Latch Lock | Female Socket |
TE Connectivity AMP Connectors 2-794657-4 | Free Hanging (In-Line) | Natural | 24 | Contacts Not Included | 4.2 mm | 0.165 in | Receptacle | 2 | Crimp | 4.2 mm | 0.165 in | Latch Lock | Female Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794657 Series
20 Rectangular Connectors - Housings Receptacle Natural 0.165" (4.20mm)
