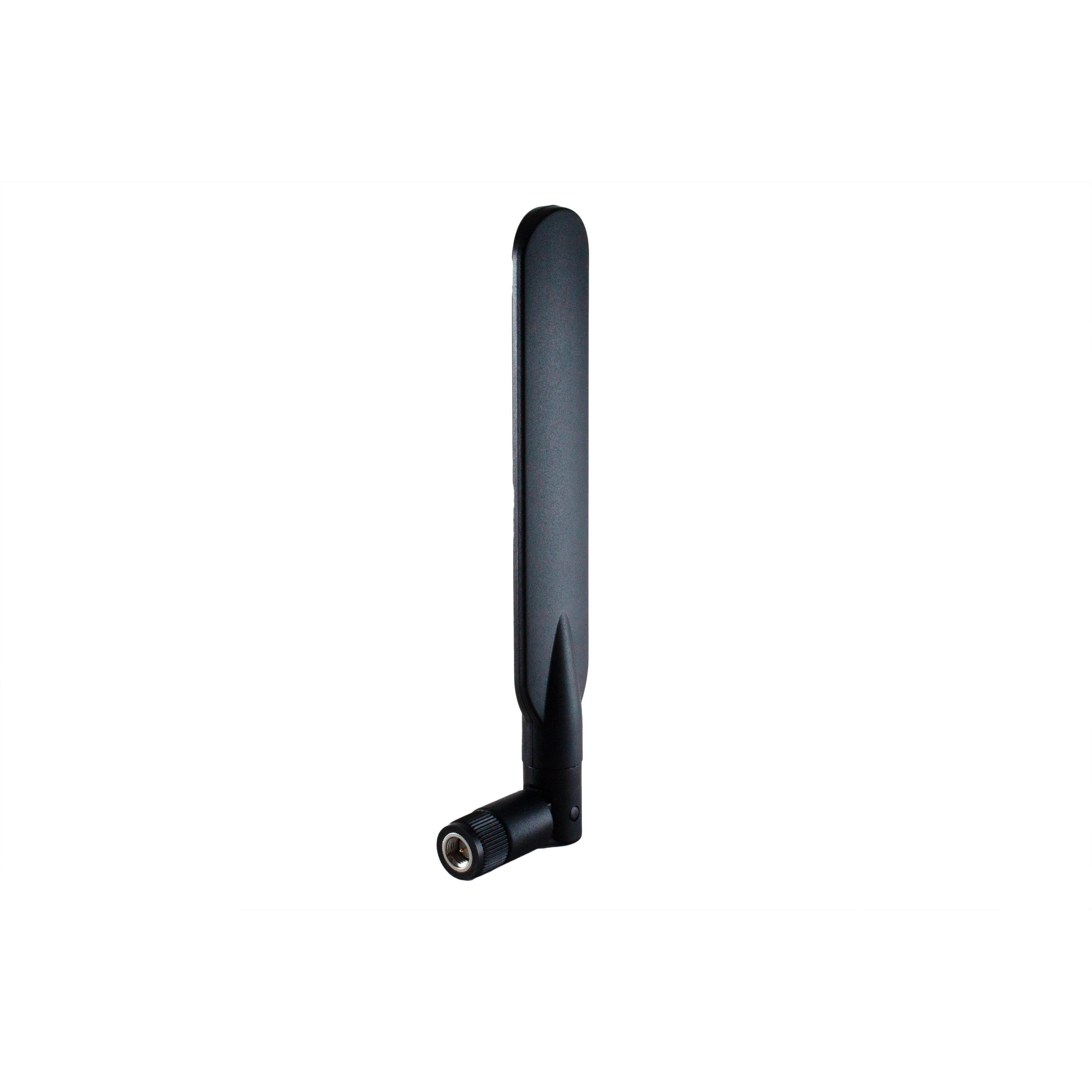

ZWX-6141RS3B
ActiveJoymax Electronics
ANT 5G BLADE RP-SMA PLUG FEMALE
ZWX-6141RS3B
ActiveJoymax Electronics
ANT 5G BLADE RP-SMA PLUG FEMALE
Description
General part information
ZWX-6141RS3B
657.5MHz, 829MHz, 2.2GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz 2G, 3G, 4G, 5G, LTE Blade, Tilt RF Antenna 617MHz ~ 698MHz, 698MHz~960MHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz 1.6dBi, 4.8dBi, 2dBi, 3.4dBi, 3.8dBi, 3.5dBi RP-SMA Female Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ZWX-6141RS3B |
|---|---|
| Antenna Type | Tilt, Blade |
| Applications | 5G, 4G, LTE, 3G, 2G |
| Frequency (Center/Band) | 4.7GHz, 5.5GHz, 657.5MHz, 2.2GHz, 3.75GHz, 6.525GHz, 829MHz |
| Frequency (Center/Band) - 1 | 657.5 MHz |
| Frequency (Center/Band) - 2 | 829 MHz |
| Frequency (Center/Band) - 3 | 2.2 GHz |
| Frequency (Center/Band) - 4 | 3.75 GHz |
| Frequency (Center/Band) - 5 | 4.7 GHz |
| Frequency (Center/Band) - 6 | 5.5 GHz |
| Frequency (Center/Band) - 7 | 6.525 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 698 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 960 MHz |
| Frequency Range (Band 2) Minimum | 698 MHz |
| Frequency Range (Band 3) Maximum | 2.17 GHz |
| Frequency Range (Band 3) Minimum | 1.71 GHz |
| Frequency Range (Band 4) Maximum | 2.69 GHz |
| Frequency Range (Band 4) Minimum | 2.17 GHz |
| Frequency Range (Band 5) Maximum | 4.2 GHz |
| Frequency Range (Band 5) Minimum | 3.3 GHz |
| Frequency Range (Band 6) Maximum | 5 GHz |
| Frequency Range (Band 6) Minimum | 4.4 GHz |
| Frequency Range (Band 7) Maximum | 5.85 GHz |
| Frequency Range (Band 7) Minimum | 5.15 GHz |
| Frequency Range (Band 8) Maximum | 7.125 GHz |
| Frequency Range (Band 8) Minimum | 5.925 GHz |
| Gain | 2 dBi, 3.8 dBi, 3.5 dBi, 3.4 dBi, 4.8 dBi, 1.6 dBi |
| Height (Max) | 6.299 in |
| Mounting Type | Connector Mount |
| Number of Bands | 8 |
| Power - Max | 1 VA |
| Return Loss | -5dB, -8dB, -10dB, -11dB, -9dB |
| Return Loss | -11 dB, -8 dB, -10 dB, -5 dB, -9 dB |
| RF Family/Standard | Cellular |
| Termination | RP-SMA Female |
| VSWR | 1.9, 1.7, 2.1, 3.2, 1.8, 2.4 |
