5210F5
ObsoleteVisual Communications Company - VCC
LED GREEN 3/16" HOLE PANEL MOUNT
5210F5
ObsoleteVisual Communications Company - VCC
LED GREEN 3/16" HOLE PANEL MOUNT
Description
General part information
5210F5

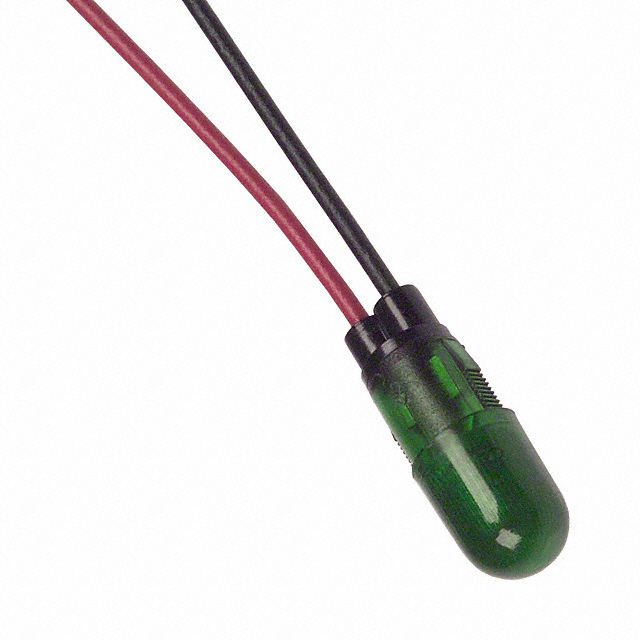

LED Panel Indicator Green 2.2V 30mA
Technical Specifications
Parameters and characteristics for this part
| Specification | 5210F5 |
|---|---|
| Current | 30 mA |
| Lamp Color | Green |
| Lens Diameter | 5.33 mm |
| Lens Style | Round, Domed Top |
| Millicandela Rating | 12 mcd |
| Panel Cutout Dimension | 0.19 " |
| Panel Cutout Shape | Round |
| Ratings | If (Max), Vf (Typ) |
| Type | LED |
| Voltage | 2.2 V |
