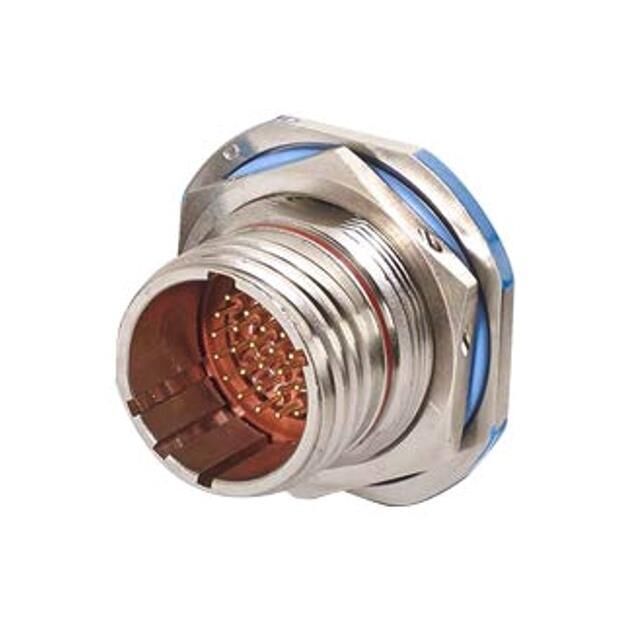

MS27468E17B26S

Active

Corsair

PLUG ANGLED

Search across all available documentation for this part.

Active

Corsair

PLUG ANGLED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MS27468E17B26S	MS27468E17B Series

Applications	Military, Aerospace	Military, Aerospace
Color	Olive Drab	Olive Drab
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut	Coupling Nut
Grade	Military	Military
Ingress Protection	IP67	IP67
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	26	8 - 26
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	N	N
Primary Material	Metal	Metal
Qualification	MIL-DTL-38999 Series I	MIL-DTL-38999 Series I
Shell Size - Insert	-	17-8
Shell Size - Insert [Max]	26	26
Shell Size - Insert [Min]	17	17
Shell Size, MIL	D	D
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

PLUG ANGLED

Part	Insert Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, MIL	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Mounting Feature	Primary Material	Material Flammability Rating	Connector Type	Contact Finish - Mating	Termination	Orientation	Grade	Shielding	Features	Qualification	Applications	Fastening Type	Number of Positions	Shell Size - Insert
Corsair MS27468E17B26S	Thermoplastic	Olive Drab	-65 ░C	200 °C	D	17	26	IP67	Bulkhead - Front Side Nut	Metal	UL94 V-0	Female Sockets, Plug	Gold	Crimp	N	Military	Shielded	Coupling Nut	MIL-DTL-38999 Series I	Aerospace, Military	Bayonet Lock	26
Corsair MS27468E17B8P	Thermoplastic	Olive Drab	-65 ░C	200 °C	D			IP67	Bulkhead - Front Side Nut	Metal	UL94 V-0	Male Pins, Plug	Gold	Crimp	N	Military	Shielded	Coupling Nut	MIL-DTL-38999 Series I	Aerospace, Military	Bayonet Lock	8	17-8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Circular Connector Plug, Female Sockets Crimp
