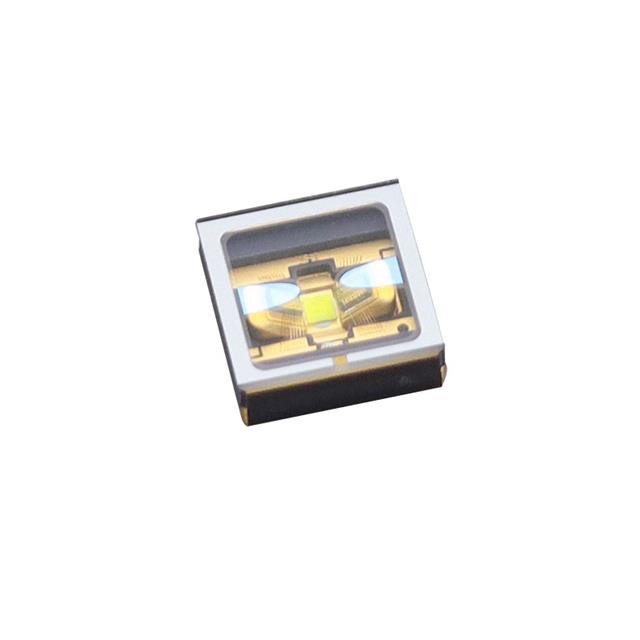

910-00010-WF

Active

Kyocera SLD Laser

LED COOL WHITE 6000K 4SMD

Search across all available documentation for this part.

Active

Kyocera SLD Laser

LED COOL WHITE 6000K 4SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED COOL WHITE 6000K 4SMD

Part	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Viewing Angle	Current - Test	Flux @ 25°C, Current - Test	CCT (K)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Supplier Device Package	Current - Max	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case
Kyocera SLD Laser 910-00003-WF	8.7 V	1.65 A	120 °	1.65 A	500 lm	6000 K	7 mm	0.276 in	0.276 "	7 mm	Surface Mount	70	0.1 in	2.53 mm	Cool, White	4-SMD
Kyocera SLD Laser 910-00010-WF	8.3 V	2.5 A	120 °	2.5 A	1000 lm	6000 K	7 mm	0.276 in	0.276 "	7 mm	Surface Mount	70	0.1 in	2.53 mm	Cool, White	4-SMD
Kyocera SLD Laser 910-00016-WF	1.8 V, 5 V		120 °		500 lm	6000 K	7 mm	0.276 in	0.276 "	7 mm	Surface Mount	70	0.1 in	2.53 mm	Cool, White	4-SMD	1 A, 2.3 A
Kyocera SLD Laser 910-00004-IT	8.7 V	1.65 A	120 °	1.65 A	500 lm	6000 K					Surface Mount	70	0.1 in	2.53 mm	Cool, White	Star Array		19.9 mm	0.783 "	Star Array
Kyocera SLD Laser 910-00017-IT	1.8 V, 5 V		120 °		500 lm	6000 K					Surface Mount	70	0.1 in	2.53 mm	Cool, White	Star Array	1 A, 2.3 A	19.9 mm	0.783 "	Star Array
Kyocera SLD Laser 910-00011-IT	8.3 V	2.5 A	120 °	2.5 A	1000 lm	6000 K					Surface Mount	70	0.1 in	2.53 mm	Cool, White	Star Array		19.9 mm	0.783 "	Star Array

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting - White, Cool 6000K 8.3V 2.5A 120° 2828 (7070 Metric)
