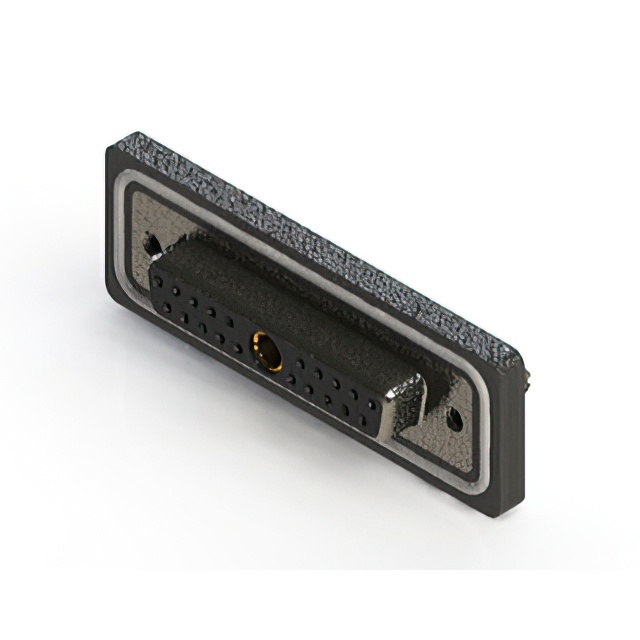

628W21W1124-1N5

Active

EDAC Inc.

CONN D-SUB RCPT 21P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W21W1124-1N5

Active

EDAC Inc.

CONN D-SUB RCPT 21P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W21W1124-1N5

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Board Lock
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	20
Number of Positions [custom]	21
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 21W1
Termination	Solder
Voltage Rating	125 VDC

628W21W Series

Part	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Shell Material, Finish	Connector Type	Contact Finish	Dielectric Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size, Connector Layout	Material Flammability Rating	Mounting Type	Voltage Rating	Features	Ingress Protection	Connector Style	Color	Contact Finish Thickness	Termination	Current Rating (Amps)
EDAC Inc. 628W21W1622-4NA	5 A 40 A	0.76 Ám	30 Áin	2	Housing/Shell (M3)	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black
EDAC Inc. 628W21W1224-2ND	5 A 20 A			2	Board Side (M3)	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Board Lock Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black	Flash	Solder
EDAC Inc. 628W21W1622-1NA		0.76 Ám	30 Áin	2	Housing/Shell (M3)	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black			10A 5A
EDAC Inc. 628W21W1124-4N5	5 A 40 A	0.127 µm	5 µin	2	4-40 Board Side	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Board Lock Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black		Solder
EDAC Inc. 628W21W1324-1ND		0.38 µm	15 µin	2	Board Side (M3)	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Board Lock Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black		Solder	10A 5A
EDAC Inc. 628W21W1624-3N2	5 A 30 A	0.76 Ám	30 Áin	2	Housing/Shell (4-40)	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black		Solder
EDAC Inc. 628W21W1224-4ND	5 A 40 A			2	Board Side (M3)	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Board Lock Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black	Flash	Solder
EDAC Inc. 628W21W1124-1N5		0.127 µm	5 µin	2	4-40 Board Side	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Board Lock Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black		Solder	10A 5A
EDAC Inc. 628W21W1224-3NA	5 A 30 A			2	Housing/Shell (M3)	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black	Flash	Solder
EDAC Inc. 628W21W1624-2NA	5 A 20 A	0.76 Ám	30 Áin	2	Housing/Shell (M3)	-25 °C	85 °C	Signal and Power	Copper Alloy	Nickel Plated Steel	Receptacle Female Sockets	Gold	Polybutylene Terephthalate (PBT) Glass Filled	20	21	1	3 (DB B) - 21W1	UL94 V-0	Panel Mount Through Hole	125 VDC	Shielded	IP67 - Dust Tight Waterproof	Combo D-Sub	Black		Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 14.38

Description

General part information

628W21W Series

21 (20 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
