132541

Obsolete

Thomas Research Products

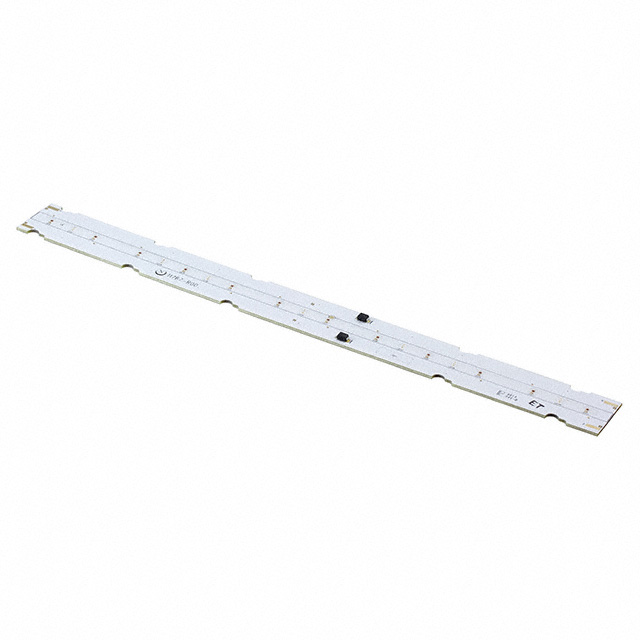

LED MOD PCBA B/R LNR LGT STR 12"

Search across all available documentation for this part.

Obsolete

Thomas Research Products

LED MOD PCBA B/R LNR LGT STR 12"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	132541	- Series

CCT (K)	-	2500 - 2700 K
Color	Blue, Red	White, Warm, Blue, Red
Configuration	Linear Light Strip	Square, Linear Light Strip, Starboard, Round
Current - Max	-	75 - 400 mA
Current - Test	1.25 A	1.25 - 300 mA
Features	-	Dimming - Warm
Height	-	1.61 - 6 mm
Lens Type	-	Flat
Lumens/Watt @ Current - Test	-	52 - 74 lm/W
Luminous Flux @ Current/Temperature	-	31 - 1787 lm
Size / Dimension	-	9.9 - 108.2 mm
Size / Dimension [x]	300.61 mm	11 - 300.61 mm
Size / Dimension [y]	29.01 mm	11 - 29.01 mm
Type	LED Module	LED Engine, LED Module
Viewing Angle	-	120 °
Voltage - Forward (Vf) (Typ)	-	12 - 120 VAC
Wavelength	460 nm, 660 nm	460 - 660 nm

LED ENG WARM WHT SQUARE 3000K

Part	Color	Lumens/Watt @ Current - Test	Viewing Angle	Current - Test	Lens Type	Height [z]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Configuration	Size / Dimension [y]	Size / Dimension [x]	Type	Wavelength	Size / Dimension [diameter]	CCT (K)	Features
Thomas Research Products 99188	Warm, White	62 lm/W	120 °	300 mA	Flat	1.8 mm	400 mA	12 VAC	224 lm	Square	11 mm	11 mm	LED Engine
Thomas Research Products 132541	Blue, Red			1.25 A						Linear Light Strip	29.01 mm	300.61 mm	LED Module	460 nm, 660 nm
Thomas Research Products 99223	Warm, White	52 lm/W	120 °	50 mA	Flat	1.61 mm	75 mA	12 VAC	31 lm	Starboard			LED Engine		9.9 mm	2700 K
Thomas Research Products 99107	Warm, White	74 lm/W	120 °	200 mA	Flat	6 mm	250 mA	120 VAC	1787 lm	Round			LED Engine		108.2 mm	2500 K	Dimming - Warm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module PCBA - Grow Light Blue, Red Linear Light Strip
