21-17-36
ActiveCinch Connectivity Solutions Trompeter

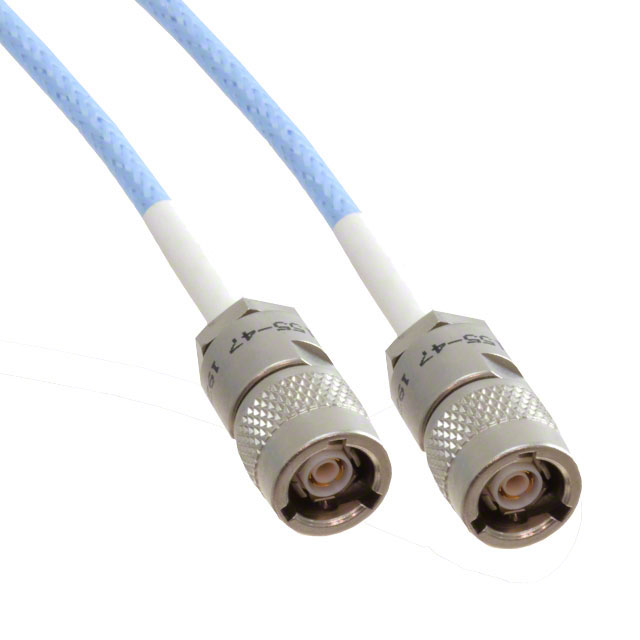

CBL ASSY TRS PLUG TO PLUG 36"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
21-17-36
ActiveCinch Connectivity Solutions Trompeter
CBL ASSY TRS PLUG TO PLUG 36"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 21-17-36 | 21-17 Series |
|---|---|---|
| 1st Connector | TRS Plug | TRS Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Contact Gender | Male | Male |
| 2nd Connector | TRS Plug | TRS Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Male | Male |
| Cable Type | Twinaxial | Twinaxial |
| Color | Blue | Blue |
| Features | Shielded | Shielded |
| Frequency - Max [Max] | 500 GHz | 500 GHz |
| Length | 91.44 cm | 1.8 - 91.44 m |
| Length | 36 in | 36 - 72 in |
| Length | - | 6 ft |
| Overall Impedance | 78 Ohms | 78 Ohms |
| Qualification | MIL-STD-1553B | MIL-STD-1553B |
| Style | TRS to TRS | TRS to TRS |
21-17 Series
CBL ASSY TRS PLUG TO PLUG 6'
| Part | Length | Length | Length | Features | Frequency - Max [Max] | Overall Impedance | 2nd Contact Gender | Cable Type | 2nd Connector | 1st Connector Mounting Type | 1st Contact Gender | 1st Connector | Qualification | 2nd Connector Mounting Type | Style | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter 21-17-72 | 6 ft | 72 in | 1.8 m | Shielded | 500 GHz | 78 Ohms | Male | Twinaxial | TRS Plug | Free Hanging (In-Line) | Male | TRS Plug | MIL-STD-1553B | Free Hanging (In-Line) | TRS to TRS | Blue |
Cinch Connectivity Solutions Trompeter 21-17-36 | 36 in | 91.44 cm | Shielded | 500 GHz | 78 Ohms | Male | Twinaxial | TRS Plug | Free Hanging (In-Line) | Male | TRS Plug | MIL-STD-1553B | Free Hanging (In-Line) | TRS to TRS | Blue |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.78 | |
Description
General part information
21-17 Series
Cable Assembly Coaxial TRS to TRS Twinaxial 36.00" (914.40mm)
