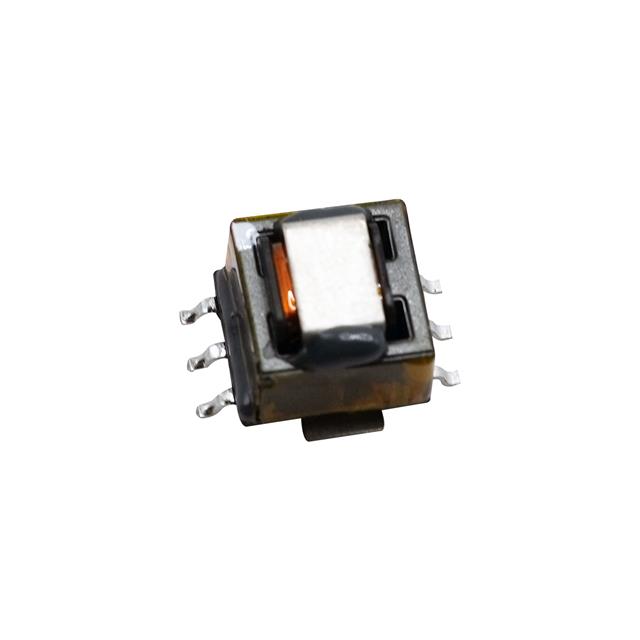

ECSTA1V1308-1125-R

ECSTA1V1308-1125-R

Active
Eaton - Electronics Division

CURRENT SENSE TRANSFORMER, 1:125, 15A ROHS COMPLIANT: YES

Find alt
ECSTA1V1308-1125-R

ECSTA1V1308-1125-R

Active
Eaton - Electronics Division

CURRENT SENSE TRANSFORMER, 1:125, 15A ROHS COMPLIANT: YES

Find alt

Description

General part information

ECSTA1V1308-1125-R

15 A 125:1 Current Sense Transformer 50kHz ~ 1MHz 3.9mOhm Primary, 5.2Ohm Secondary Max 8.7 mH Surface Mount

Technical Specifications

Parameters and characteristics for this part

SpecificationECSTA1V1308-1125-R
Current Rating15 A
DC Resistance (DCR) (Primary)3.9 mOhm
DC Resistance (DCR) (Secondary Max)5.2 Ohm
DC Resistance TypePrimary, Secondary Max
Frequency Range (Max)1 MHz
Frequency Range (Min)50 kHz
Height - Seated (Max)0.307 in
Inductance8.7 mH
Mounting TypeSurface Mount
RatingsAEC-Q200
Size / Dimension Length0.512 in
Size / Dimension Width0.433 in
Termination StyleGull Wing
Turns Ratio - Primary125
Turns Ratio - Secondary1
TypeInvasive
