YK5110603000G
ActiveAMPHENOL ANYTEK

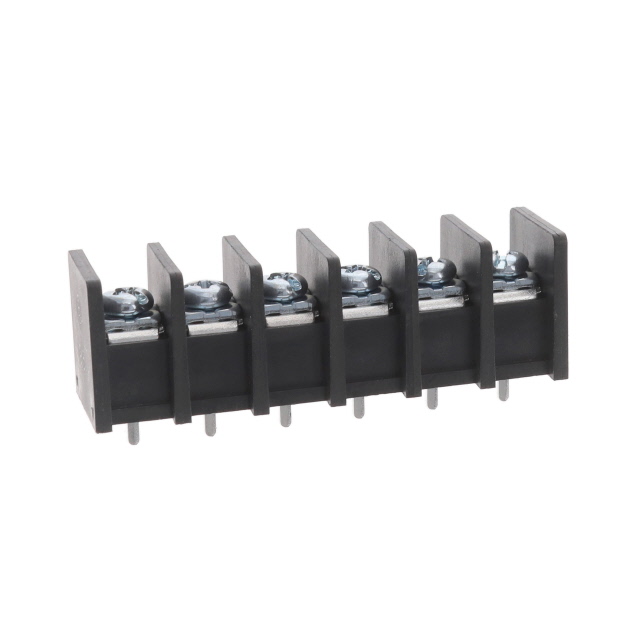

CONN BARRIER STRIP 6CIRC 0.374"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YK5110603000G
ActiveAMPHENOL ANYTEK
CONN BARRIER STRIP 6CIRC 0.374"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | YK5110603000G | YK511 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Color | Black | Black |
| Current Rating (Amps) | 30 A | 30 A |
| Material - Insulation | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 6 | 3 - 30 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 6 | 3 - 30 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.374 in | 0.374 in |
| Pitch [x] | 9.5 mm | 9.5 mm |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Nickel | Nickel |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
YK511 Series
CONN BARRIER STRP 29CIRC 0.374"
| Part | Bottom Termination | Voltage Rating | Top Termination | Terminal Screw Finish | Number of Wire Entries | Wire Gauge [Max] | Wire Gauge [Min] | Color | Barrier Type | Number of Circuits | Material - Insulation | Terminal Screw Material | Terminal Block Type | Material Flammability Rating | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL ANYTEK YK5112903000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 29 | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | 29 | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C |
AMPHENOL ANYTEK YK5112403000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | 24 | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C | |
AMPHENOL ANYTEK YK5110703000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 7 | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | 7 | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C |
AMPHENOL ANYTEK YK5112003000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 20 | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | 20 | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C |
AMPHENOL ANYTEK YK5111203000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 12 | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | 12 | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C |
AMPHENOL ANYTEK YK5111703000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 17 | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | 17 | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C |
AMPHENOL ANYTEK YK5110903000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 9 | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C | |
AMPHENOL ANYTEK YK5111503000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 15 | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | 15 | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C |
AMPHENOL ANYTEK YK5111103000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 11 | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | 11 | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C |
AMPHENOL ANYTEK YK5110603000G | PC Pin | 300 VDC | Screws with Captive Plate | Nickel | 6 | 22 AWG | 10 AWG | Black | 2 Wall (Dual) | 6 | Thermoplastic | Steel | Barrier Block | UL94 V-0 | 0.374 in | 9.5 mm | 1 | Through Hole | 30 A | -40 °C | 115 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.93 | |
| 10 | $ 1.17 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.93 | |||
| 100 | $ 0.87 | |||
| 250 | $ 0.82 | |||
Description
General part information
YK511 Series
6 Circuit 0.374" (9.50mm) Barrier Block Connector Screws with Captive Plate
