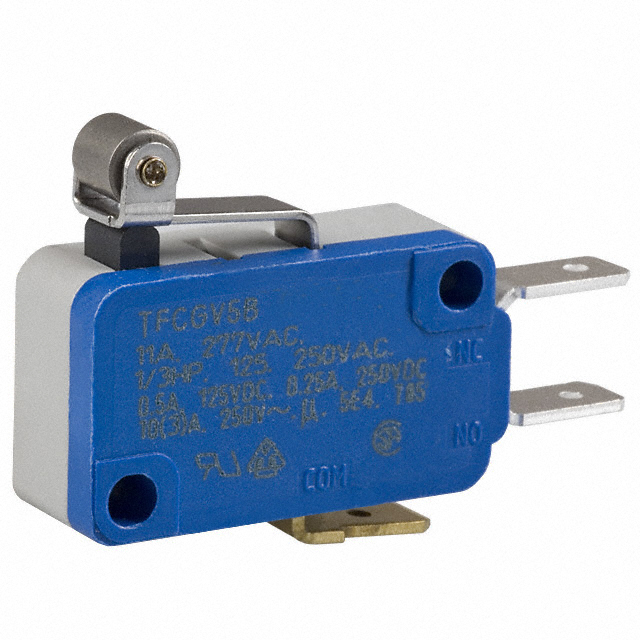

TFCGV3VA105BC
ObsoleteLITTELFUSE
SWITCH SNAP ACTION SPDT 11A 277V
TFCGV3VA105BC
ObsoleteLITTELFUSE
SWITCH SNAP ACTION SPDT 11A 277V
Description
General part information
TFCGV3VA105BC
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TFCGV3VA105BC |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating | 0.5 A, 11 A |
| Differential Travel (Linear) | 0.015 in |
| Mounting Type | Chassis Mount |
| Operating Force | 90 gf |
| Operating Position (Length) | 0.812 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overtravel (Linear) | 0.03 in |
| Pretravel (Length) | 0.06 in |
| Quick Connect Size (0.187") | 0.187 in |
| Release Force | 15 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 277 V |
| Voltage Rating - DC | 125 V |
