EDAC Inc.

78P FEMALE RIGHT-ANGLE 4 3A -55℃~+125℃ PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

634-078-363-535

Active

EDAC Inc.

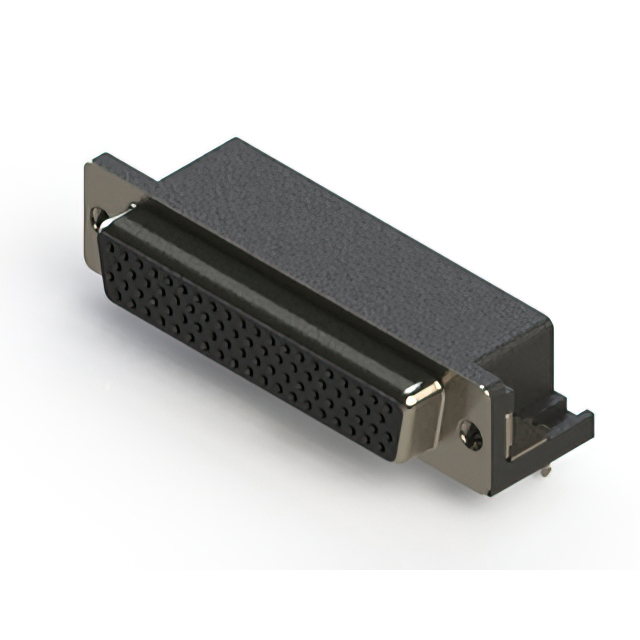

78P FEMALE RIGHT-ANGLE 4 3A -55℃~+125℃ PUSH-PULL D-SUB / VGA CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	634-078-363-535

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	78
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Termination	Solder

634-078 Series

Part	Flange Feature	Material Flammability Rating	Termination	Connector Style	Mounting Type	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Connector Type	Number of Positions	Shell Material, Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Dielectric Material	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 634-078-663-532	Housing/Shell (4-40)	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal	0.76 Ám	30 Áin	8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A
EDAC Inc. 634-078-263-031	Housing/Shell (Unthreaded)	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal			8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	85 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A	Flash
EDAC Inc. 634-078-663-033	Female Screwlock (4-40) Mating Side	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal	0.76 Ám	30 Áin	8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	85 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A
EDAC Inc. 634-078-363-531	Housing/Shell (Unthreaded)	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal	0.38 µm	15 µin	8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A
EDAC Inc. 634-078-663-030	4-40	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal	0.76 Ám	30 Áin	8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	85 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A
EDAC Inc. 634-078-263-535	Housing/Shell (M3)	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal			8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A	Flash
EDAC Inc. 634-078-363-535	Housing/Shell (M3)	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal	0.38 µm	15 µin	8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A
EDAC Inc. 634-078-663-530	4-40	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal	0.76 Ám	30 Áin	8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A
EDAC Inc. 634-078-263-533	Female Screwlock (4-40) Mating Side	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal			8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A	Flash
EDAC Inc. 634-078-263-033	Female Screwlock (4-40) Mating Side	UL94 V-0	Solder	D-Sub High Density	Board Edge Right Angle Through Hole	Gold	Signal			8.89 mm	0.35 in	Receptacle Female Sockets	78	Nickel Plated Steel	Copper Alloy	-55 °C	85 °C	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	3 A	Flash
