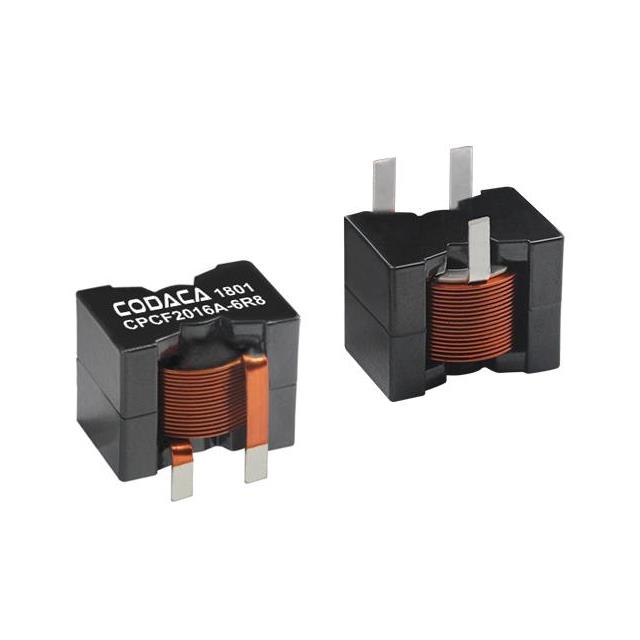

CPCF2016A-6R8MC
6.8 µH Shielded Wirewound Inductor 22 A 3.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CPCF2016A-6R8MC |
|---|---|
| Current - Saturation (Isat) | 30 A |
| Current Rating | 22 A |
| DC Resistance (DCR) (Max) | 3.5 mOhm |
| Height - Seated (Max) | 0.571 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical, 3 PC Pin, Nonstandard |
| Package Name | 2016, Vertical |
| Pad Count | 3 PC Pin |
| Shielding | Shielded |
| Size / Dimension Length | 0.858 in |
| Size / Dimension Width | 0.65 in |
| Supplier Device Package | 2016 |
| Tolerance | 20 % |
| Type | Wirewound |
