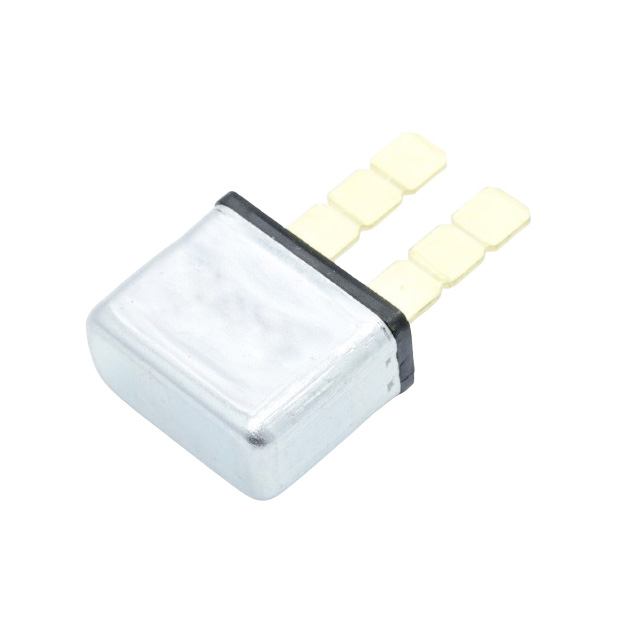

ACB2-PL-30A
ActiveOptiFuse
FUSE FOOTPRINT CB-TYPE I , 30A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACB2-PL-30A
ActiveOptiFuse
FUSE FOOTPRINT CB-TYPE I , 30A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ACB2-PL-30A | ACB2-PL Series |
|---|---|---|
| Actuator Type | Automatic Reset | Automatic Reset |
| Approval Agency | SAE J553 | SAE J553 |
| Current Rating (Amps) | 30 A | 8 - 40 A |
| Illumination | None | None |
| Number of Poles | 1 | 1 |
| Voltage Rating - DC | 12 V | 12 V |
ACB2-PL Series
FUSE FOOTPRINT CB-TYPE I , 40A
| Part | Current Rating (Amps) | Actuator Type | Illumination | Approval Agency | Voltage Rating - DC | Number of Poles |
|---|---|---|---|---|---|---|
OptiFuse ACB2-PL-40A | 40 A | Automatic Reset | None | SAE J553 | 12 V | 1 |
OptiFuse ACB2-PL-8A | 8 A | Automatic Reset | None | SAE J553 | 12 V | 1 |
OptiFuse ACB2-PL-30A | 30 A | Automatic Reset | None | SAE J553 | 12 V | 1 |
OptiFuse ACB2-PL-25A | 25 A | Automatic Reset | None | SAE J553 | 12 V | 1 |
OptiFuse ACB2-PL-35A | 35 A | Automatic Reset | None | SAE J553 | 12 V | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.34 | |
| 10 | $ 4.08 | |||
| 25 | $ 3.81 | |||
| 50 | $ 3.56 | |||
| 100 | $ 3.25 | |||
| 250 | $ 3.19 | |||
| 500 | $ 3.09 | |||
| 1000 | $ 2.99 | |||
Description
General part information
ACB2-PL Series
Circuit Breaker 30A AC 12 V DC Automatic Reset
Documents
Technical documentation and resources
