Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGG.2K.013.CLL | EGG.2K Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze, Copper |
| Current Rating (Amps) | 6 A | 1.5 - 25 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | - | 2 - 26 |
| Number of Positions | - | 11 |
| Number of Positions | - | 1 |
| Number of Positions | - | 10 |
| Number of Positions | - | 16 |
| Number of Positions [custom] | 1 | 1 |
| Number of Positions [custom] | 6 | 6 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 13 | 13 - 810 |
| Shell Size - Insert | - | P13 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder, Crimp |
EGG.2K Series

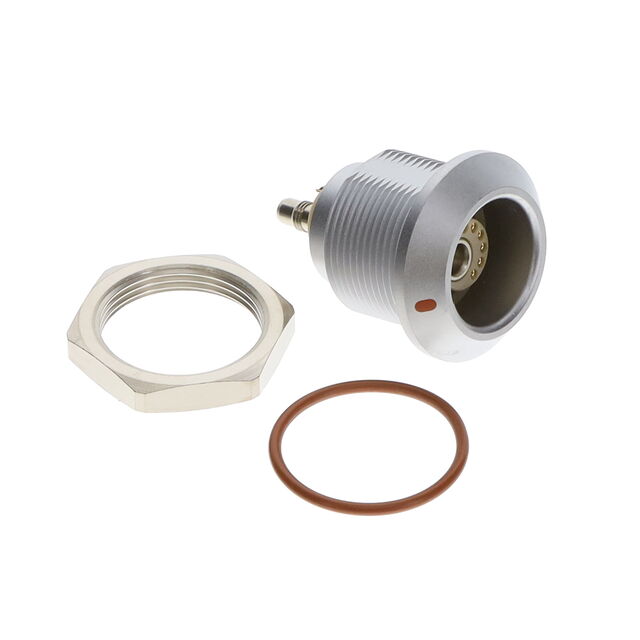

Circular Push Pull Connectors
| Part | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Material | Mounting Feature | Material Flammability Rating | Ingress Protection | Number of Positions | Insert Material | Contact Finish - Mating | Shell Finish | Shell Size - Insert | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Orientation | Current Rating (Amps) | Color | Shell Material | Mounting Type | Termination | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Shell Size - Insert | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGG.2K.306.CLLH | Metal | 59 Áin | 1.5 Ám | Push-Pull | Bronze | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | 6 | Polyetheretherketone (PEEK) | Gold | Chrome | 306 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 12 A | Silver | Brass | |||||||||
LEMO EGG.2K.310.CLN | Metal | 59 Áin | 1.5 Ám | Push-Pull | Bronze | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | 10 | Polyetheretherketone (PEEK) | Gold | Chrome | 310 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 8 A | Silver | Brass | Panel Mount, Through Hole | Solder | |||||||
LEMO EGG.2K.307.CYM | Metal | 59 Áin | 1.5 Ám | Push-Pull | Bronze | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | 7 | Polyetheretherketone (PEEK) | Gold | Chrome | 307 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 11 A | Silver | Brass | Crimp | ||||||||
LEMO EGG.2K.332.CLL | Metal | 59 Áin | 1.5 Ám | Push-Pull | Bronze | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | Polyetheretherketone (PEEK) | Gold | Chrome | 332 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 1.5 A | Silver | Brass | ||||||||||
LEMO EGG.2K.013.CLL | Metal | 59 Áin | 1.5 Ám | Push-Pull | Bronze | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | Polyetheretherketone (PEEK) | Gold | Chrome | 13 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 6 A | Silver | Brass | 1 | 6 | ||||||||
LEMO EGG.2K.810.CLW | Metal | Push-Pull | Copper | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | Polyetheretherketone (PEEK) | Gold | Chrome | 810 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 7 A | Silver | Brass | 11 | 1 | 10 | |||||||||
LEMO EGG.2K.306.CYM | Metal | 59 Áin | 1.5 Ám | Push-Pull | Bronze | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | 6 | Polyetheretherketone (PEEK) | Gold | Chrome | 306 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 12 A | Silver | Brass | Crimp | ||||||||
LEMO EGG.2K.302.CLL | Metal | 59 Áin | 1.5 Ám | Push-Pull | Bronze | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | 2 | Polyetheretherketone (PEEK) | Gold | Chrome | 302 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 25 A | Silver | Brass | |||||||||
LEMO EGG.2K.326.CLL | Metal | 59 Áin | 1.5 Ám | Push-Pull | Bronze | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | 26 | Polyetheretherketone (PEEK) | Gold | Chrome | 326 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 2 A | Silver | Brass | |||||||||
LEMO EGG.2K.319.CLL | Metal | 59 Áin | 1.5 Ám | Push-Pull | Bronze | Bulkhead - Rear Side Nut | UL94 V-0 | IP66/IP68 | 19 | Polyetheretherketone (PEEK) | Gold | Chrome | 319 | Receptacle, Female Sockets | -55 °C | 200 °C | Shielded | G | 5 A | Silver | Brass |
