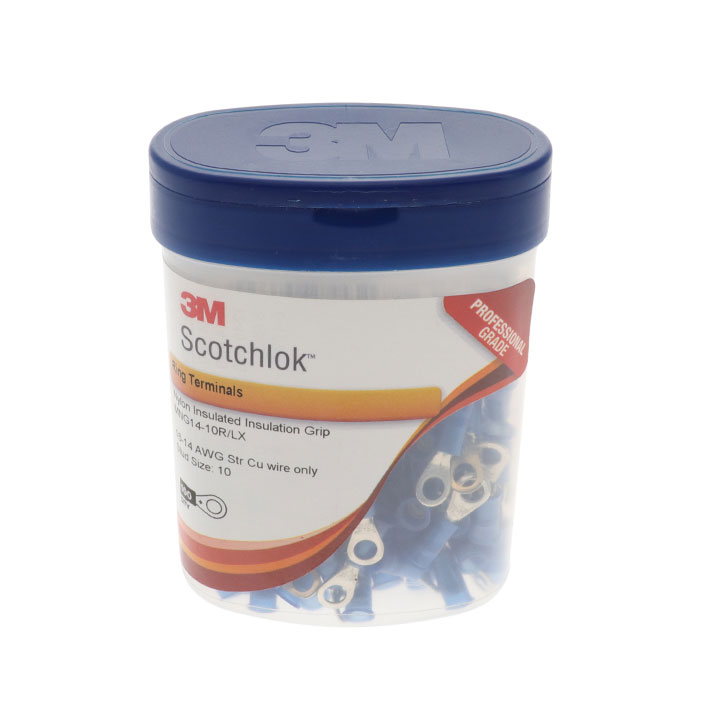

MNG14-10R/LX-BOTTLE
Active3M
CONN RING CIRC 14-16AWG 10 100PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MNG14-10R/LX-BOTTLE
Active3M
CONN RING CIRC 14-16AWG 10 100PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MNG14-10R/LX-BOTTLE | MNG14 Series |
|---|---|---|
| Color | Blue | Blue |
| Contact Finish | Tin | Tin |
| Contact Material | ETP, Copper | ETP, Copper, Brass |
| Gender | - | Female, Male |
| Insulation | Insulated | Insulated, Non-Mating End Insulated, Fully Insulated |
| Insulation Diameter | - | 3.68 mm |
| Insulation Diameter | - | 0.145 " |
| Length - Overall | - | 0.77 - 18.03 mm |
| Length - Overall | - | 0.71 " |
| Length - Overall | - | 19.56 mm |
| Length - Overall [x] | 0.94 in | 0.81 - 1.14 in |
| Length - Overall [x] | 23.88 mm | 20.57 - 28.96 mm |
| Length - Ring Center to Termination | - | 0.25 in |
| Length - Ring Center to Termination | - | 6.35 mm |
| Length - Ring Center to Termination | - | 0.29 in |
| Length - Ring Center to Termination | - | 7.37 mm |
| Length - Termination | - | 11.68 mm |
| Length - Termination | - | 0.46 in |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Wire Entries | - | 2 |
| Stud/Tab Size | 10 Stud | 0.25 - 10 Stud |
| Stud/Tab Size | - | 3/8 Stud, 8 Stud |
| Tab Thickness | - | 0.02 - 0.032 " |
| Tab Thickness | - | 0.51 - 0.81 mm |
| Tab Width | - | 2.79 - 6.35 mm |
| Tab Width | - | 0.11 - 0.25 in |
| Terminal Type | Circular | Flanged, Circular, Standard, Snap, Spring, Butt Splice, Inline, Individual Openings, Stacked |
| Termination | Crimp | Crimp |
| Thickness | 0.03 in | 0.03 in |
| Thickness | 0.76 mm | 0.76 mm |
| Width - Outer Edges | 7.87 mm | 7.87 - 8.64 mm |
| Width - Outer Edges | - | 6.1 - 14.22 mm |
| Width - Outer Edges | - | 0.34 in |
| Width - Outer Edges [y] | 0.31 in | 0.24 - 0.56 " |
MNG14 Series
CONN SPADE TERM 14-16AWG 6 100PC
| Part | Contact Material | Contact Finish | Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Mounting Type | Length - Overall | Length - Overall | Color | Length - Termination [custom] | Length - Termination [custom] | Stud/Tab Size | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Material - Insulation | Termination | Terminal Type | Stud/Tab Size | Thickness | Thickness | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges | Length - Overall | Insulation Diameter | Insulation Diameter [diameter] | Gender | Tab Thickness | Tab Thickness | Tab Width | Tab Width | Number of Wire Entries | Length - Ring Center to Termination | Length - Ring Center to Termination | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copper, ETP | Tin | Insulated | 0.25 " | 6.35 mm | Free Hanging (In-Line) | 18.03 mm | 0.71 " | Blue | 11.68 mm | 0.46 in | 6 Stud | 0.25 in | 6.35 mm | Nylon, Polyamide (PA) | Crimp | Flanged | |||||||||||||||||||
Copper, ETP | Tin | Insulated | 0.56 in | 14.22 mm | Free Hanging (In-Line) | Blue | Nylon, Polyamide (PA) | Crimp | Circular | 3/8 Stud | 0.03 in | 0.76 mm | 1.14 in | 28.96 mm | |||||||||||||||||||||
Copper, ETP | Tin | Insulated | 0.25 " | 6.35 mm | Free Hanging (In-Line) | Blue | Nylon, Polyamide (PA) | Crimp | Circular | 8 Stud | 0.03 in | 0.76 mm | 0.81 in | 20.57 mm | |||||||||||||||||||||
Copper, ETP | Tin | Insulated | Free Hanging (In-Line) | Blue | 11.68 mm | 0.46 in | 6 Stud | 0.25 in | 6.35 mm | Nylon, Polyamide (PA) | Crimp | Flanged | 0.86 " | 21.84 mm | |||||||||||||||||||||
Copper, ETP | Tin | Insulated | Free Hanging (In-Line) | Blue | 11.68 mm | 0.46 in | 0.25 in | 6.35 mm | Nylon, Polyamide (PA) | Crimp | Flanged | 8 Stud | 0.86 " | 21.84 mm | |||||||||||||||||||||
Copper, ETP | Tin | Insulated | Free Hanging (In-Line) | Blue | 11.68 mm | 0.46 in | 6 Stud | 0.25 in | 6.35 mm | Nylon, Polyamide (PA) | Crimp | Standard | 0.86 " | 21.84 mm | |||||||||||||||||||||
Copper, ETP | Tin | Insulated | 0.47 in | 11.94 mm | Free Hanging (In-Line) | Blue | 0.25 Stud | Nylon, Polyamide (PA) | Crimp | Circular | 0.03 in | 0.76 mm | 1.09 in | 27.69 mm | |||||||||||||||||||||
Copper, ETP | Tin | Insulated | Free Hanging (In-Line) | Blue | 11.68 mm | 0.46 in | 0.25 in | 6.35 mm | Nylon, Polyamide (PA) | Crimp | Snap, Spring | 8 Stud | 0.89 in | 22.61 mm | |||||||||||||||||||||
Copper, ETP | Tin | Insulated | 0.31 in | Free Hanging (In-Line) | Blue | Nylon, Polyamide (PA) | Crimp | Circular | 8 Stud | 0.03 in | 0.76 mm | 0.94 in | 23.88 mm | 7.87 mm | |||||||||||||||||||||
Brass | Tin | Non-Mating End Insulated | Free Hanging (In-Line) | 0.77 in | Blue | Crimp | Standard | 19.56 mm | 3.68 mm | 0.145 " | Female | 0.02 " | 0.51 mm | 4.75 mm | 0.187 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 130.32 | |
Description
General part information
MNG14 Series
Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
Documents
Technical documentation and resources
