7-1394461-1
ActiveTE Connectivity AMP Connectors

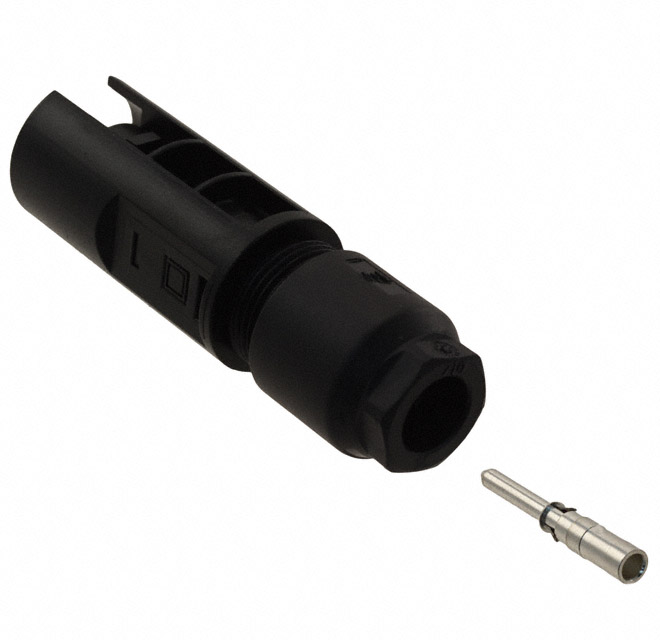

CONN MALE COUPLER MINUS 12AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-1394461-1
ActiveTE Connectivity AMP Connectors
CONN MALE COUPLER MINUS 12AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7-1394461-1 | 1394461 Series |
|---|---|---|
| Coded, Keyed | Minus | Non-Keyed, Minus, Plus |
| Features | 12 AWG | 10 - 12 AWG |
| Features | - | 14 AWG |
| Features | - | 12 AWG |
| Type | Male Coupler | Male Coupler |
1394461 Series
CONN MALE COUPLER UNKEYED 10AWG
| Part | Type | Coded, Keyed | Features | Features [Max] | Features [Min] |
|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-1394461-5 | Male Coupler | Non-Keyed | 10 AWG | ||
TE Connectivity AMP Connectors 6-1394461-6 | Male Coupler | Minus | 10 AWG | ||
TE Connectivity AMP Connectors 6-1394461-2 | Male Coupler | Non-Keyed | 12 AWG | ||
TE Connectivity AMP Connectors 1394461-3 | Male Coupler | Plus | 12 AWG | ||
TE Connectivity AMP Connectors 6-1394461-5 | Male Coupler | Plus | 10 AWG | ||
TE Connectivity AMP Connectors 1-1394461-4 | Male Coupler | Minus | 14 AWG | 12 AWG | |
TE Connectivity AMP Connectors 7-1394461-3 | Male Coupler | Plus | 10 AWG | ||
TE Connectivity AMP Connectors 7-1394461-1 | Male Coupler | Minus | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2.04 | |
| 10 | $ 1.82 | |||
| 25 | $ 1.81 | |||
| 50 | $ 1.79 | |||
| 100 | $ 1.63 | |||
Description
General part information
1394461 Series
Male Coupler Connector Minus 12 AWG
