031-3301

Active

AMPHENOL RF

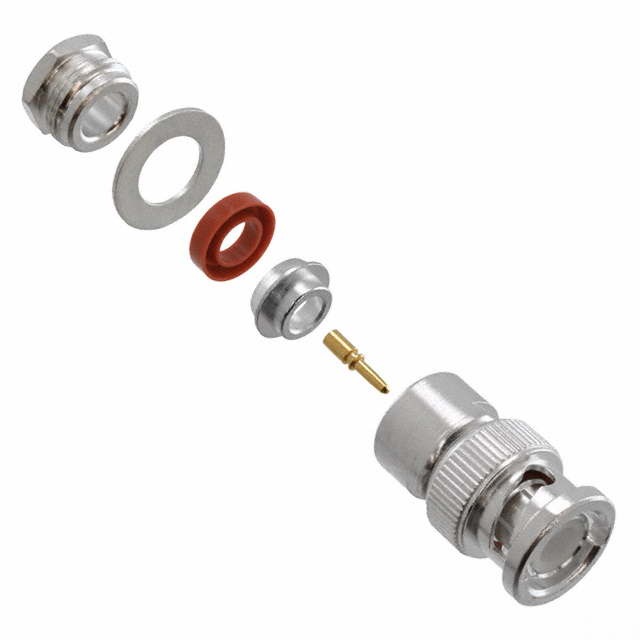

CONN BNC PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

031-3301

Active

AMPHENOL RF

CONN BNC PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-3301	031-33 Series

	-	-
Body Finish	Silver	Nickel, Silver
Body Material	Brass	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58	Belden 1426A, RG-59, 9100, 8281, 1501A, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, 140, 8263, 59B, 8279, 210, Belden 8241, 62, 9209, RG-55
Cable Group	-	142 - 400
Center Contact Material	Brass	Beryllium Copper, Zinc Die Cast, Phosphor Bronze, Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	Triaxial, BNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Solder, Crimp, Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 - 500 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Impedance	-	Non-Constant
Includes	Clamp, 1 Contact, 1 Connector, 1 Gasket, 1 Washer, 1 Clamp, 1 Braid	1 Ferrule, 1 Connector, 1 Heat Shrink, 1 Washer, 1 Contact, 2 Braid Clamps, 1 Clamp, 1 Gasket, 1 Spacer, 1 Nut, 1 Lockwasher, 2 Gaskets, Clamp, 1 Braid, Insulator, Braid Clamp, Washer, Contact, Gasket, Connector
Ingress Protection	Weatherproof	Weatherproof
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Rear Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Clamp, Crimp, Solder
Voltage Rating	500 V	500 V

031-33 Series

CONN BNC TRIAX PLUG R/A SOLDER

Part	Center Contact Material	Shield Termination	Center Contact Plating	Body Finish	Ingress Protection	Housing Color	Impedance	Body Material	Mounting Type	Number of Ports	Fastening Type	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Type	Contact Termination	Dielectric Material	Frequency - Max [Max]	Includes	Connector Style	Impedance	Voltage Rating	Cable Group	Mounting Feature
AMPHENOL RF 031-33485-24	Beryllium Copper	Clamp	Gold	Nickel	Weatherproof	Silver	Non-Constant	Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Solder	Polytetrafluoroethylene (PTFE)	500 MHz	1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Heat Shrink, 1 Washer, 2 Braid Clamps	BNC, Triaxial
AMPHENOL RF 031-336	Phosphor Bronze, Zinc Die Cast	Crimp	Gold	Nickel		Silver		Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	1 Connector, 1 Contact, 1 Ferrule	BNC	50 Ohms	500 V	1501A, 8281, 9100, Belden 1426A, RG-59
AMPHENOL RF 031-33546-17	Brass	Clamp	Gold	Nickel	Weatherproof	Silver	Non-Constant	Brass	Free Hanging (In-Line)	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Female Socket, Jack	Solder	Polytetrafluoroethylene (PTFE)	500 MHz	1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut, 1 Spacer, 2 Braid Clamps, 2 Gaskets	BNC, Triaxial
AMPHENOL RF 031-33224-13
AMPHENOL RF 031-3301	Brass	Clamp	Gold	Silver	Weatherproof	Silver		Brass	Free Hanging (In-Line)	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Solder	Polytetrafluoroethylene (PTFE)	4 GHz	1 Braid, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer, Clamp	BNC	50 Ohms	500 V	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58
AMPHENOL RF 031-33546-16	Brass	Clamp	Gold	Nickel	Weatherproof	Silver	Non-Constant	Brass	Free Hanging (In-Line)	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Female Socket, Jack	Solder	Polytetrafluoroethylene (PTFE)	500 MHz	1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut, 1 Spacer, 2 Braid Clamps, 2 Gaskets	BNC, Triaxial
AMPHENOL RF 031-3376	Phosphor Bronze	Solder	Gold	Silver		Silver		Brass		1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Female Socket, Jack	Solder Cup	Polytetrafluoroethylene (PTFE)	4 GHz	1 Connector, 1 Lockwasher, 1 Nut	BNC	50 Ohms	500 V		Bulkhead - Rear Side Nut
AMPHENOL RF 031-336-RFX	Brass	Crimp	Gold	Nickel		Silver		Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Crimp	Polyoxymethylene (POM) Acetal	4 GHz	1 Connector, 1 Contact, 1 Ferrule	BNC	50 Ohms	500 V	1501A, 8281, 9100, Belden 1426A, RG-59
AMPHENOL RF 031-335	Phosphor Bronze, Zinc Die Cast	Crimp	Gold	Nickel		Silver		Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	1 Connector, 1 Contact, 1 Ferrule	BNC	50 Ohms	500 V	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58
AMPHENOL RF 031-33546-8	Beryllium Copper	Clamp	Gold	Nickel	Weatherproof	Silver	Non-Constant	Brass	Free Hanging (In-Line), Right Angle	1	Bayonet Lock	0.2 dB	-65 ░C	165 °C	500	Male Pin, Plug	Solder	Polytetrafluoroethylene (PTFE)	500 MHz	1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Heat Shrink, 1 Washer, 2 Braid Clamps	BNC, Triaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.18
		10	$ 21.17
		25	$ 20.26
		50	$ 19.60
		100	$ 18.95
		300	$ 17.91
		500	$ 17.38

Description

General part information

031-33 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
