100023037

Active

Telegartner Inc

CU-CN MFP8 T568A C6A D1-1.6

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN MFP8 T568A C6A D1-1.6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

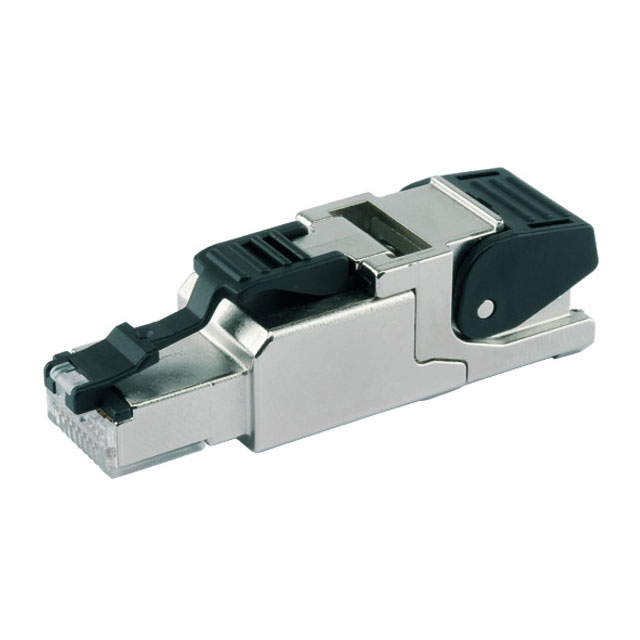

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC

Technical documentation and resources

Specification	100023037	J00026A2 Series

Cable Type	Round Cable, Solid, Stranded Wires	Round Cable, Solid, Stranded Wires
Color	Black	Black
Connector Type	Plug	Plug
Contact Finish	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Strain Relief, Locking Hook, Protective Cap	Strain Relief, Locking Hook, Protective Cap
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Ratings	Cat6a	Cat6a
Shield Material	Brass	Brass
Shielding	Shielded	Shielded
Termination	IDC	IDC
Wire Gauge [Max]	27 AWG	27 AWG
Wire Gauge [Min]	22 AWG	22 AWG

Part	Color	Shield Material	Housing Material	Number of Positions/Contacts	Cable Type	Wire Gauge [Min]	Wire Gauge [Max]	Features	Termination	Contact Finish	Shielding	Ratings	Contact Material	Connector Type
Telegartner Inc 100023038	Black	Brass	Polycarbonate (PC)	8p8c (RJ45, Ethernet)	Round Cable, Solid, Stranded Wires	22 AWG	27 AWG	Locking Hook, Protective Cap, Strain Relief	IDC	Tin	Shielded	Cat6a	Phosphor Bronze	Plug
Telegartner Inc 100023037	Black	Brass	Polycarbonate (PC)	8p8c (RJ45, Ethernet)	Round Cable, Solid, Stranded Wires	22 AWG	27 AWG	Locking Hook, Protective Cap, Strain Relief	IDC	Tin	Shielded	Cat6a	Phosphor Bronze	Plug
