RDC40-8R2M-RC
ActiveAllied Components International
8.2UH +/-20% RADIAL DRUM CORE
RDC40-8R2M-RC
ActiveAllied Components International
8.2UH +/-20% RADIAL DRUM CORE
Description
General part information
RDC40-8R2M-RC

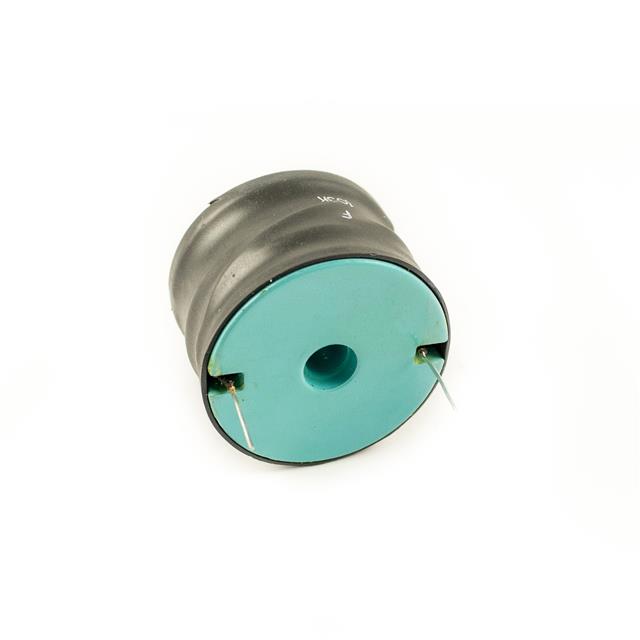

8.2 µH Unshielded Drum Core Inductor 27 A 4mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | RDC40-8R2M-RC |
|---|---|
| Current - Saturation (Isat) | 69 A |
| Current Rating | 27 A |
| DC Resistance (DCR) (Max) | 4 mOhm |
| Height - Seated (Max) | 1.03 in |
| Inductance | 8.2 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Package Name | Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 1.5 in |
| Tolerance | 20 % |
| Type | Drum Core |
