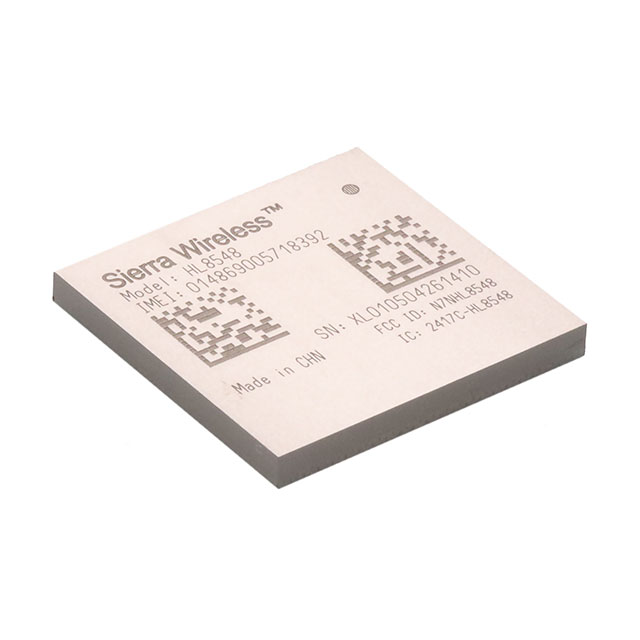

HL8548_1103971

Obsolete

Sierra Wireless

RF TXRX MOD CELL NAV SMD

Search across all available documentation for this part.

Obsolete

Sierra Wireless

RF TXRX MOD CELL NAV SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HL8548_1103971	HL8548 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Data Rate	7.2 Mbps	7.2 - 10 Mbps
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz	850 - 1900 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	146-LGA Module	Module, 146-LGA Module
Protocol	GNSS, HSPA, GLONASS, GSM, EDGE, GPS, GPRS	GSM, EDGE, GPRS, GNSS, GLONASS, GPS, HSPA
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Serial Interfaces	ADC, USB, UART, GPIO	UART, USB, ADC, GPIO

RF TXRX MODULE CELL SMD

Part	Data Rate	Protocol	Mounting Type	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Serial Interfaces	Frequency	Antenna Type
Sierra Wireless HL8548_1102648	10 Mbps	EDGE, GLONASS, GNSS, GPRS, GPS, GSM	Surface Mount	Cellular	85 °C	-40 °C	Module	UART, USB	850 MHz, 900 MHz, 1800 MHz, 1900 MHz
Sierra Wireless HL8548-G_1103969	7.2 Mbps	EDGE, GLONASS, GNSS, GPRS, GPS, GSM, HSPA	Surface Mount	Cellular, Navigation	85 °C	-40 °C	146-LGA Module	ADC, GPIO, UART, USB	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Antenna Not Included
Sierra Wireless HL8548_1103971	7.2 Mbps	EDGE, GLONASS, GNSS, GPRS, GPS, GSM, HSPA	Surface Mount	Cellular, Navigation	85 °C	-40 °C	146-LGA Module	ADC, GPIO, UART, USB	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Antenna Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular, Navigation EDGE, GLONASS, GNSS, GPRS, GPS, GSM, HSPA Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
