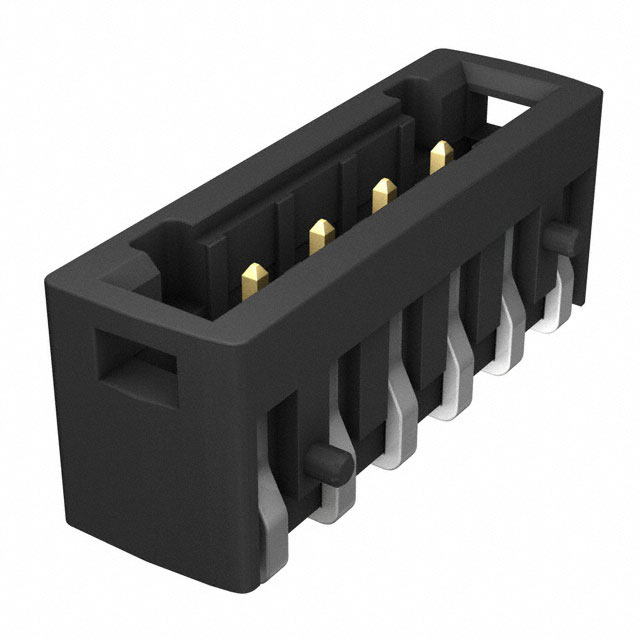

XW4K-04A1-V1

Active

Omron Electronics Inc-EMC Div

TERM BLOCK HDR 4POS VERT 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XW4K-04A1-V1

Active

Omron Electronics Inc-EMC Div

TERM BLOCK HDR 4POS VERT 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XW4K-04A1-V1	XW4K Series

Color	Black	Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	6 A	6 A
Features	Latches, Board Guide	Latches, Board Guide
Header Orientation	Vertical	Vertical, 90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height [z]	7.44 mm	7.44 mm
Insulation Height [z]	0.293 in	0.293 in
Mounting Type	Surface Mount	Surface Mount
Number of Levels	1	1
Number of Positions	4	2 - 6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-45 °C	-45 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Positions Per Level	4	2 - 6
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	160 V	160 V
Wire Gauge or Range - AWG [Max]	26 AWG	26 AWG
Wire Gauge or Range - AWG [Min]	20 AWG	20 AWG
Wire Gauge or Range - mm˛	-	0.14 mm˛
Wire Gauge or Range - mm˛	-	0.5 mm˛
Wire Gauge or Range - mm² [Max]	0.5 mm²	0.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²	0.14 mm²
Wire Strip Length	6 mm	6 mm

XW4K Series

TERM BLOCK HDR 4POS VERT 2.54MM

Part	Insulation Height [z]	Insulation Height [z]	Contact Mating Finish	Positions Per Level	Number of Positions	Number of Levels	Current - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Type	Contact Material	Color	Pitch [x]	Pitch [x]	Header Orientation	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Wire Strip Length	Mounting Type	Housing Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Omron Electronics Inc-EMC Div XW4K-04A1-V1	7.44 mm	0.293 in	Tin	4	4	1	6 A	0.14 mm²	0.5 mm²	160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	Vertical	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C
Omron Electronics Inc-EMC Div XW4K-03A1-V1	7.44 mm	0.293 in	Tin	3		1	6 A			160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	Vertical	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C	0.14 mm˛	0.5 mm˛
Omron Electronics Inc-EMC Div XW4K-06A1-H1	7.44 mm	0.293 in	Tin	6	6	1	6 A	0.14 mm²	0.5 mm²	160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	90°, Right Angle	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C
Omron Electronics Inc-EMC Div XW4K-05A1-V1	7.44 mm	0.293 in	Tin	5		1	6 A			160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	Vertical	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C	0.14 mm˛	0.5 mm˛
Omron Electronics Inc-EMC Div XW4K-02A1-H1	7.44 mm	0.293 in	Tin	2	2	1	6 A	0.14 mm²	0.5 mm²	160 V	Header, Male Pins, Shrouded (4 Side)	Copper Alloy	Black	2.54 mm	0.1 in	90°, Right Angle	26 AWG	20 AWG	Board Guide, Latches	6 mm	Surface Mount	Liquid Crystal Polymer (LCP), Glass Filled	Solder	125 °C	-45 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.03
		10	$ 2.29
		25	$ 2.12
		50	$ 1.91
		100	$ 1.86
		250	$ 1.63
	Tape & Reel (TR)	500	$ 1.15

Description

General part information

XW4K Series

4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.100" (2.54mm) Vertical Surface Mount

Documents

Technical documentation and resources
