3-826953-6
ActiveTE Connectivity AMP Connectors

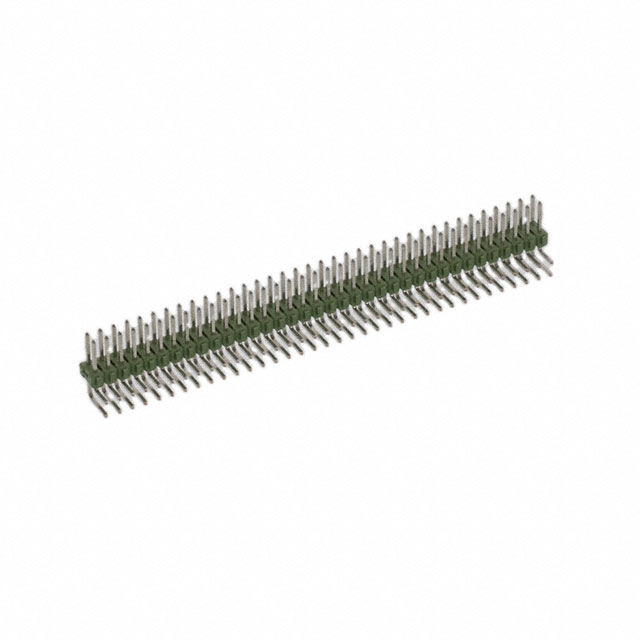

CONN HEADER R/A 72POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-826953-6
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 72POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-826953-6 | 826953 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 78.7 µin | 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm | 2 µm |
| Contact Finish Thickness - Post | 2 çm | 2 çm |
| Contact Finish Thickness - Post | 78.7 çin | 78.7 çin |
| Contact Length - Mating | 6.7 mm | 6.7 mm |
| Contact Length - Mating | 0.264 in | 0.264 in |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Green | Green |
| Insulation Height | 5.56 mm | 5.56 mm |
| Insulation Height [z] | 0.219 in | 0.219 in |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 72 | 6 - 72 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
826953 Series
CONN HEADER R/A 64POS 2.54MM
| Part | Number of Positions Loaded | Contact Shape | Style | Mounting Type | Shrouding | Contact Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height [z] | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Termination | Insulation Color | Fastening Type | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Contact Material | Current Rating (Amps) | Number of Positions | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Contact Length - Post | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-826953-2 | All | Square | Board to Board, Cable | Through Hole, Right Angle | Unshrouded | Male Pin | Breakaway, Header | -65 ░C | 105 ░C | 0.219 in | 5.56 mm | 2.54 mm | 0.1 in | Solder | Green | Push-Pull | 6.7 mm | 0.264 in | 78.7 µin | 2 µm | Polybutylene Terephthalate (PBT) | Copper Alloy | 5 A | 64 | UL94 V-0 | 2 çm | 78.7 çin | Tin | 3.2 mm | 0.126 in | 0.1 in | 2.54 mm | 2 |
TE Connectivity AMP Connectors 3-826953-6 | All | Square | Board to Board, Cable | Through Hole, Right Angle | Unshrouded | Male Pin | Breakaway, Header | -65 ░C | 105 ░C | 0.219 in | 5.56 mm | 2.54 mm | 0.1 in | Solder | Green | Push-Pull | 6.7 mm | 0.264 in | 78.7 µin | 2 µm | Polybutylene Terephthalate (PBT) | Copper Alloy | 5 A | 72 | UL94 V-0 | 2 çm | 78.7 çin | Tin | 3.2 mm | 0.126 in | 0.1 in | 2.54 mm | 2 |
TE Connectivity AMP Connectors 826953-3 | All | Square | Board to Board, Cable | Through Hole, Right Angle | Unshrouded | Male Pin | Breakaway, Header | -65 ░C | 105 ░C | 0.219 in | 5.56 mm | 2.54 mm | 0.1 in | Solder | Green | Push-Pull | 6.7 mm | 0.264 in | 78.7 µin | 2 µm | Polybutylene Terephthalate (PBT) | Copper Alloy | 5 A | 6 | UL94 V-0 | 2 çm | 78.7 çin | Tin | 3.2 mm | 0.126 in | 0.1 in | 2.54 mm | 2 |
TE Connectivity AMP Connectors 1-826953-0 | All | Square | Board to Board, Cable | Through Hole, Right Angle | Unshrouded | Male Pin | Breakaway, Header | -65 ░C | 105 ░C | 0.219 in | 5.56 mm | 2.54 mm | 0.1 in | Solder | Green | Push-Pull | 6.7 mm | 0.264 in | 78.7 µin | 2 µm | Polybutylene Terephthalate (PBT) | Copper Alloy | 5 A | 20 | UL94 V-0 | 2 çm | 78.7 çin | Tin | 3.2 mm | 0.126 in | 0.1 in | 2.54 mm | 2 |
TE Connectivity AMP Connectors 826953-4 | All | Square | Board to Board, Cable | Through Hole, Right Angle | Unshrouded | Male Pin | Breakaway, Header | -65 ░C | 105 ░C | 0.219 in | 5.56 mm | 2.54 mm | 0.1 in | Solder | Green | Push-Pull | 6.7 mm | 0.264 in | 78.7 µin | 2 µm | Polybutylene Terephthalate (PBT) | Copper Alloy | 5 A | 8 | UL94 V-0 | 2 çm | 78.7 çin | Tin | 3.2 mm | 0.126 in | 0.1 in | 2.54 mm | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.52 | |
| 10 | $ 3.75 | |||
| 100 | $ 3.10 | |||
| 500 | $ 2.72 | |||
| 1000 | $ 2.58 | |||
Description
General part information
826953 Series
Connector Header Through Hole, Right Angle 72 position 0.100" (2.54mm)
