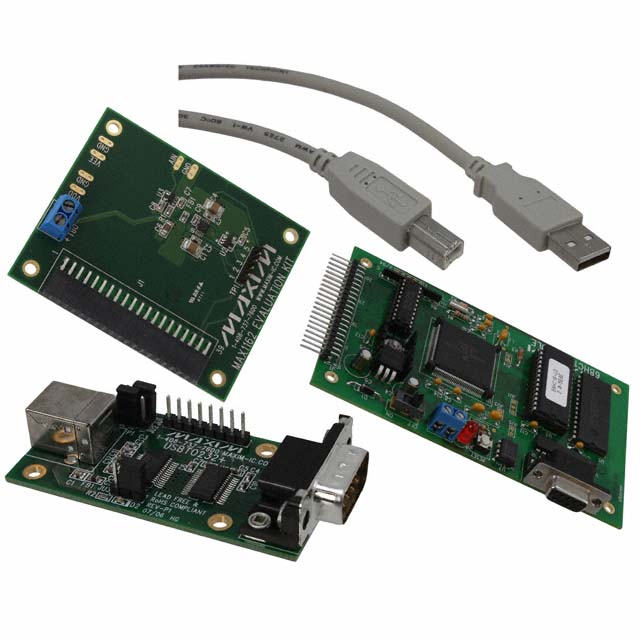

MAX1162EVC16
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAX1162
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX1162EVC16
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAX1162
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX1162EVC16 | MAX1162 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | S/H-ADC |
| Data Interface | Serial | SPI, Serial |
| Input Range [Max] | VREF | VREF |
| Input Range [Min] | 0 | 0 |
| Input Type | - | Single Ended |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 16 | 16 |
| Number of Inputs | - | 1 |
| Operating Temperature | - | 70 - 85 °C |
| Operating Temperature | - | -40 - 0 °C |
| Package / Case | - | 10-MSOP, 10-TFSOP |
| Package / Case | - | 3 mm |
| Package / Case | - | 0.118 in |
| Power (Typ) @ Conditions | - | 12.5 mW |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External |
| Sampling Rate (Per Second) | 200k | 200k |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-uMAX/uSOP |
| Utilized IC / Part | MAX1062, MAX1162 | MAX1062, MAX1162 |
| Voltage - Supply, Analog | - | 5 V |
| Voltage - Supply, Digital | - | 5.25 V |
| Voltage - Supply, Digital | - | 2.7 V |
MAX1162 Series
IC ADC 16BIT SAR 10UMAX
| Part | Mounting Type | Supplier Device Package | Voltage - Supply, Analog | Data Interface | Operating Temperature [Max] | Operating Temperature [Min] | Sampling Rate (Per Second) | Configuration | Number of Inputs | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of A/D Converters | Reference Type | Number of Bits | Package / Case | Package / Case [x] | Package / Case [x] | Input Type | Ratio - S/H:ADC | Architecture | Utilized IC / Part | Supplied Contents | Input Range [Max] | Input Range [Min] | Power (Typ) @ Conditions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX1162AEUB+T | Surface Mount | 10-uMAX/uSOP | 5 V | SPI | 85 °C | -40 °C | 200k | S/H-ADC | 1 | 5.25 V | 2.7 V | 1 | External | 16 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Single Ended | 1:1 | SAR | |||||
Analog Devices Inc./Maxim Integrated MAX1162BCUB+T | Surface Mount | 10-uMAX/uSOP | 5 V | SPI | 70 °C | 0 °C | 200k | S/H-ADC | 1 | 5.25 V | 2.7 V | 1 | External | 16 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Single Ended | 1:1 | SAR | |||||
Analog Devices Inc./Maxim Integrated MAX1162CEUB+T | Surface Mount | 10-uMAX/uSOP | 5 V | SPI | 85 °C | -40 °C | 200k | S/H-ADC | 1 | 5.25 V | 2.7 V | 1 | External | 16 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Single Ended | 1:1 | SAR | |||||
Analog Devices Inc./Maxim Integrated MAX1162ACUB+ | Surface Mount | 10-uMAX/uSOP | 5 V | SPI | 70 °C | 0 °C | 200k | S/H-ADC | 1 | 5.25 V | 2.7 V | 1 | External | 16 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Single Ended | 1:1 | SAR | |||||
Analog Devices Inc./Maxim Integrated MAX1162BEUB+T | Surface Mount | 10-uMAX/uSOP | 5 V | SPI | 85 °C | -40 °C | 200k | S/H-ADC | 1 | 5.25 V | 2.7 V | 1 | External | 16 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Single Ended | 1:1 | SAR | |||||
Analog Devices Inc./Maxim Integrated MAX1162CCUB+ | Surface Mount | 10-uMAX/uSOP | 5 V | SPI | 70 °C | 0 °C | 200k | S/H-ADC | 1 | 5.25 V | 2.7 V | 1 | External | 16 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Single Ended | 1:1 | SAR | |||||
Analog Devices Inc./Maxim Integrated MAX1162AEUB+ | Surface Mount | 10-uMAX/uSOP | 5 V | SPI | 85 °C | -40 °C | 200k | S/H-ADC | 1 | 5.25 V | 2.7 V | 1 | External | 16 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Single Ended | 1:1 | SAR | |||||
Analog Devices Inc./Maxim Integrated MAX1162ACUB+T | Surface Mount | 10-uMAX/uSOP | 5 V | SPI | 70 °C | 0 °C | 200k | S/H-ADC | 1 | 5.25 V | 2.7 V | 1 | External | 16 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Single Ended | 1:1 | SAR | |||||
Analog Devices Inc./Maxim Integrated MAX1162EVKIT | Serial | 200k | 1 | 16 | MAX1062, MAX1162 | Board(s) | VREF | 0 | 12.5 mW | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX1162BEUB+ | Surface Mount | 10-uMAX/uSOP | 5 V | SPI | 85 °C | -40 °C | 200k | S/H-ADC | 1 | 5.25 V | 2.7 V | 1 | External | 16 | 10-MSOP, 10-TFSOP | 3 mm | 0.118 in | Single Ended | 1:1 | SAR |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MAX1162 Series
MAX1162, MAX1062 - 16 Bit 200k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
