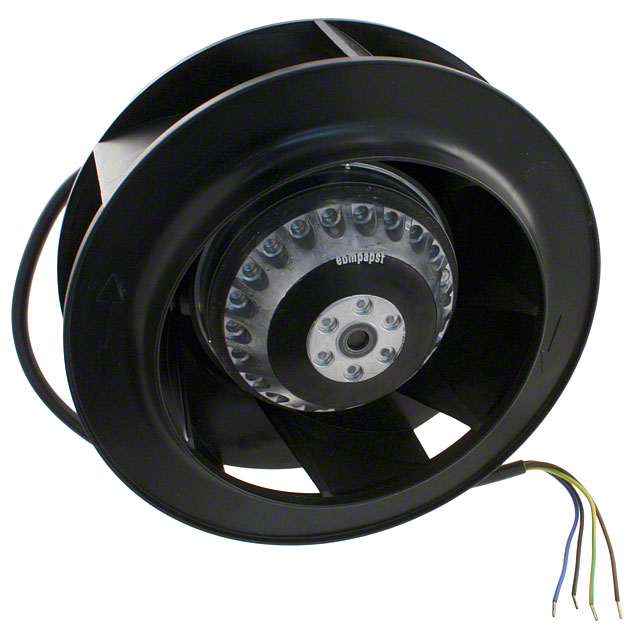

R2E190-AO26-25
NRNDebm-papst Inc.
FAN IMP MTRZD 190X63MM 230VAC
R2E190-AO26-25
NRNDebm-papst Inc.
FAN IMP MTRZD 190X63MM 230VAC
Description
General part information
R2E190-AO26-25
Fan Motorized Impellers 230VAC Round - 190mm Dia Ball 365.0 CFM (10.22m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | R2E190-AO26-25 |
|---|---|
| Air Flow | 365 CFM |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Material - Blade | Polyamide, PA, Nylon |
| Noise | 64 dB |
| Power (Watts) | 75 W |
| RPM | 2700 RPM |
| Size / Dimension Diameter | 190 mm |
| Size / Dimension Shape | Round |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 230 VAC |
| Width | 63 mm |
