Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS28E80EVKIT# | DS28E80 Series |
|---|---|---|
| Access Time | - | 2 µs |
| Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Function | EEPROM | EEPROM |
| Memory Format | - | EEPROM |
| Memory Interface | - | 1-Wire® |
| Memory Organization | - | 2K x 1 |
| Memory Size | - | 256 B |
| Memory Type | - | Non-Volatile |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Secondary Attributes | Graphical User Interface (GUI) | Graphical User Interface (GUI) |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Supplier Device Package | - | 6-TDFN (3x3) |
| Technology | - | EEPROM |
| Type | Memory | Memory |
| Utilized IC / Part | DS28E80 | DS28E80 |
| Voltage - Supply | - | 2.97 V |
| Voltage - Supply | - | 3.63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 106.30 | |
DS28E80 Series
EVAL KIT FOR DS28E80
| Part | Function | Supplied Contents | Contents | Type | Secondary Attributes | Utilized IC / Part | Access Time | Supplier Device Package | Memory Organization | Memory Interface | Memory Size | Memory Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Technology | Memory Format |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS28E80EVKIT# | EEPROM | Board(s), Cable(s) | Board(s), Cable(s) | Memory | Graphical User Interface (GUI) | DS28E80 | |||||||||||||
Analog Devices Inc./Maxim Integrated DS28E80Q+T | 2 µs | 6-TDFN (3x3) | 2K x 1 | 1-Wire® | 256 B | Non-Volatile | 85 °C | -40 °C | Surface Mount | 2.97 V | 3.63 V | EEPROM | EEPROM |
Description
General part information
DS28E80 Series

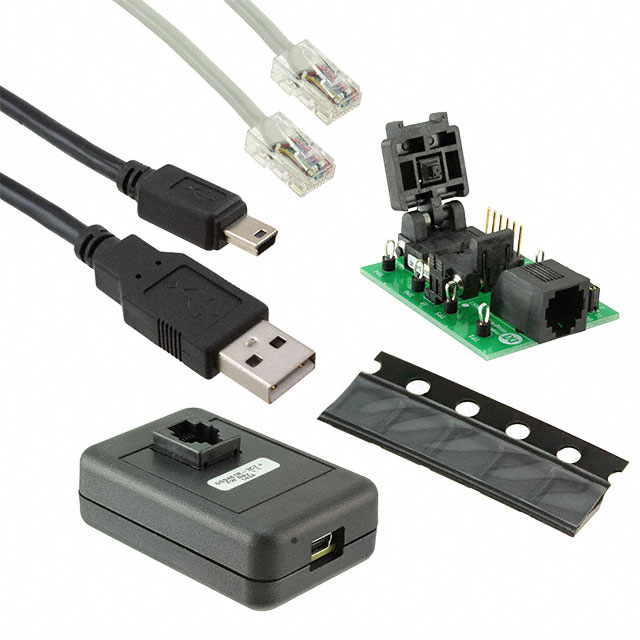

DS28E80 EEPROM Memory Evaluation Board
