Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 228.96 | |
| Retail Package | 1 | $ 279.00 | ||
General part information
Communications Module DIN Rail
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | WISE-4610-NA | WISE-4610 Series |
|---|---|---|
| Applications | Wireless | Wireless |
| Approval Agency | FCC, CE | FCC, CE |
| Data Rate (Max) [Max] | 115.2 kbps | 115.2 kbps |
| Features | 15 km | 15 km |
| Features | IP65 | IP65 |
| Frequency [Max] | 928 MHz | 928 MHz |
| Frequency [Min] | 902 MHz | 902 MHz |
| Function | Wireless Module | Wireless Module |
| Interface | RS-485, USB | RS-485, USB |
| Modulation or Protocol | LoRa, LoRaWAN | LoRa, LoRaWAN |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Power - Output | 18 dBm | 18 dBm |
| Sensitivity | -136 dBm | -136 dBm |
| Termination Style | Circular | Circular |
| Type | Communications Module | Wireless I/O Module, Communications Module |
| Voltage - Supply [Max] | 50 VDC | 50 VDC |
| Voltage - Supply [Min] | 10 VDC | 10 VDC |

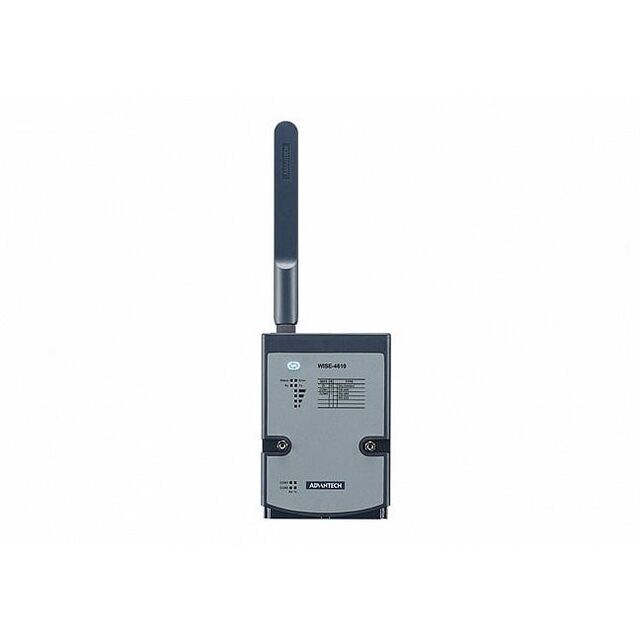

LORA OUTDOOR WIRELESS SENSOR NOD
| Part | Type | Function | Frequency [Min] | Frequency [Max] | Termination Style | Power - Output | Interface | Approval Agency | Data Rate (Max) [Max] | Applications | Modulation or Protocol | Features | Features | Operating Temperature [Max] | Operating Temperature [Min] | Sensitivity | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Advantech Corp WISE-4610-S672NA | Wireless I/O Module | ||||||||||||||||||
Advantech Corp WISE-4610-NA | Communications Module | Wireless Module | 902 MHz | 928 MHz | Circular | 18 dBm | RS-485, USB | CE, FCC | 115.2 kbps | Wireless | LoRa, LoRaWAN | 15 km | IP65 | 70 °C | -25 °C | -136 dBm | DIN Rail | 50 VDC | 10 VDC |
