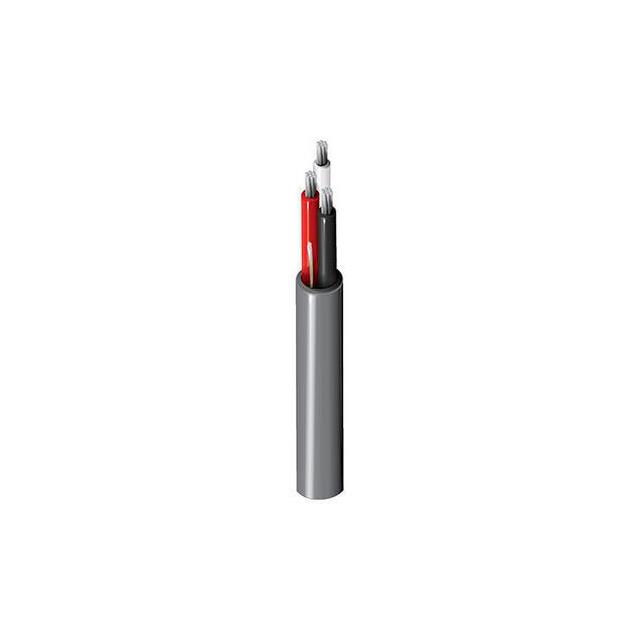

1034A 0104000

Active

Belden Inc.

CABLE 3COND 16AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 16AWG BLACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1034A 0104000	1034A Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	7	7
Conductor Strand [custom]	24	24
Jacket (Insulation) Diameter [diameter]	6.86 mm	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm	0.94 mm
Jacket (Insulation) Thickness	0.037 in	0.037 in
Jacket Color	Black	Black
Length [x]	1219.2 m	1219.2 m
Length [x]	4000 ft	4000 ft
Number of Conductors	3	3
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 3COND 16AWG BLACK

Part	Number of Conductors	Wire Gauge	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Cable Type	Conductor Material	Voltage	Jacket Color	Length [x]	Length [x]
Belden Inc. 1034A 0105000	3	16 AWG	Poly-Vinyl Chloride (PVC)	7	24	0.94 mm	0.037 in	6.86 mm	0.27 in	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper, Bare	300 V	Black
Belden Inc. 1034A 0104000	3	16 AWG	Poly-Vinyl Chloride (PVC)	7	24	0.94 mm	0.037 in	6.86 mm	0.27 in	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper, Bare	300 V	Black	1219.2 m	4000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	4000	$ 1.27

General part information

3 (1 Triad Twisted) Conductor Multi-Conductor Cable Black 16 AWG 4000' (1219.2m)
