1606 SL021
ActiveALPHA WIRE

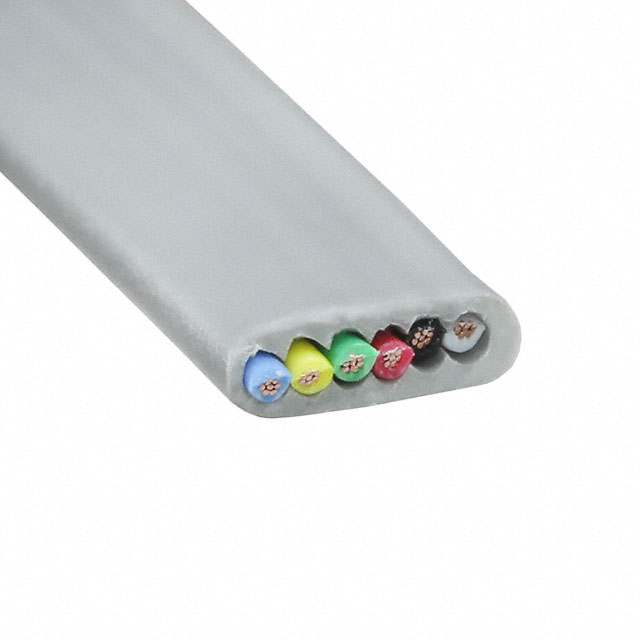

CABLE 6COND 26AWG SILVER 1000'
Deep-Dive with AI
Search across all available documentation for this part.
1606 SL021
ActiveALPHA WIRE
CABLE 6COND 26AWG SILVER 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1606 SL021 | 1606 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Conductor Material | Copper, Bare | Copper, Bare |
| Conductor Strand | 7 Strands, 34 AWG | 7 - 34 Strands |
| Jacket (Insulation) Diameter [diameter] | 6.86 mm | 6.86 mm |
| Jacket (Insulation) Diameter [diameter] | 0.27 in | 0.27 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.024 in | 0.024 in |
| Jacket (Insulation) Thickness | 0.61 mm | 0.61 mm |
| Jacket Color | Silver | Silver |
| Length | 1000 ft | 328.1 - 1000 ft |
| Length | 304.8 m | 100 - 304.8 m |
| Number of Conductors | 6 | 6 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Usage | Control, Communication | Control, Communication |
| Voltage | 150 V | 150 V |
| Wire Gauge | 26 AWG | 26 AWG |
1606 Series
CABLE 6COND 26AWG SILVER 100M
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Wire Gauge | Usage | Cable Type | Number of Conductors | Length | Length | Conductor Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Conductor Insulation | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1606 SL030 | 6.86 mm | 0.27 in | 7 Strands, 34 AWG | 26 AWG | Communication, Control | Multi-Conductor | 6 | 100 m | 328.1 ft | Copper, Bare | 150 V | 0.024 in | 0.61 mm | -20 C | 60 °C | Silver | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) |
ALPHA WIRE 1606 SL021 | 6.86 mm | 0.27 in | 7 Strands, 34 AWG | 26 AWG | Communication, Control | Multi-Conductor | 6 | 304.8 m | 1000 ft | Copper, Bare | 150 V | 0.024 in | 0.61 mm | -20 C | 60 °C | Silver | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 864.28 | |
Description
General part information
1606 Series
6 Conductor Multi-Conductor Cable Silver 26 AWG 1000.0' (304.8m)
