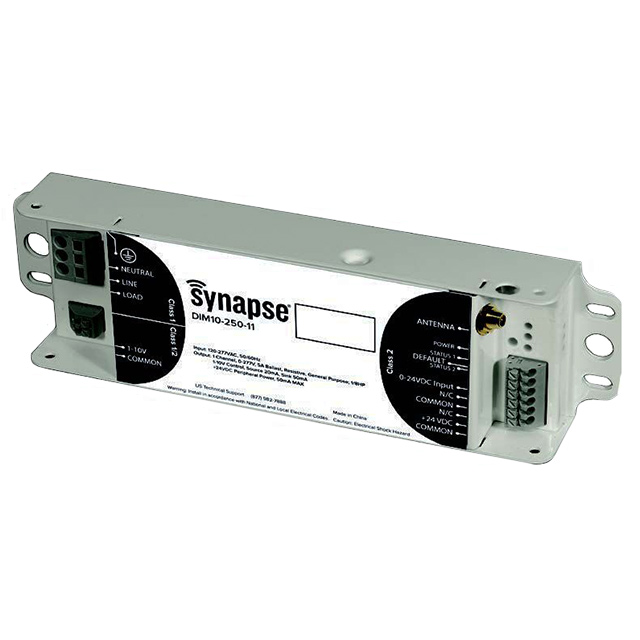

DIM10-250-11

Active

Synapse Wireless

WIRELESS LIGHTING CONTROL SWITCH

Search across all available documentation for this part.

Active

Synapse Wireless

WIRELESS LIGHTING CONTROL SWITCH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DIM10-250-11	DIM10 Series

Applications	IoT Finished Device, Lighting	General Purpose, IoT Finished Device, Lighting
Frequency	2.4 GHz	2.4 GHz
Function	Wireless Lighting Controller	Wireless Lighting Controller
Modulation or Protocol	802.15.4	802.15.4
Power - Output	20 dBm	20 dBm
Sensitivity	-105 dBm	-105 - -103 dBm
Voltage - Supply [Max]	277 V	24 - 277 V
Voltage - Supply [Min]	100 VDC	5 - 100 VDC

120-277V WIRELESS CONTROLLER, 2A

Part	Frequency	Function	Power - Output	Sensitivity	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation or Protocol	Applications
Synapse Wireless DIM10-100-00	2.4 GHz	Wireless Lighting Controller	20 dBm	-103 dBm	100 VDC	277 V	802.15.4	General Purpose, IoT Finished Device
Synapse Wireless DIM10-087-00	2.4 GHz	Wireless Lighting Controller	20 dBm	-103 dBm	5 V	24 V	802.15.4	General Purpose, IoT Finished Device
Synapse Wireless DIM10-250-11	2.4 GHz	Wireless Lighting Controller	20 dBm	-105 dBm	100 VDC	277 V	802.15.4	IoT Finished Device, Lighting

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Wireless Lighting Controller 2.4GHz 802.15.4
