3-1393659-9

Active

TE Connectivity AMP Connectors

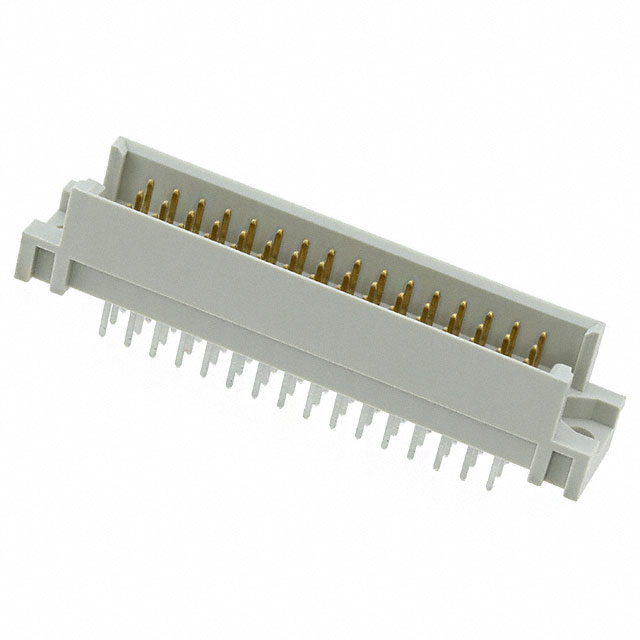

CONN DIN PLUG 48POS PCB GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN DIN PLUG 48POS PCB GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48 Position Din Connector Plug, Male Pins Gold or Gold-Palladium Through Hole

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	3-1393659-9	1393659 Series

Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold, Gold-Palladium	Gold, Gold-Palladium
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	48	48 - 96
Number of Positions Loaded	All	All
Number of Positions Loaded	-	64
Number of Rows	3	3
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Style	R/2 (1/2 R)	R, R/2 (1/2 R)
Termination	Solder	Solder

CONN DIN PLUG 96POS PCB GOLD

Part	Mounting Type	Style	Number of Positions	Material - Insulation	Pitch [x]	Pitch [x]	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Material Flammability Rating	Number of Positions Loaded	Termination	Number of Rows	Number of Positions Loaded
TE Connectivity AMP Connectors 2-1393659-8	Through Hole	R	96	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	Gold, Gold-Palladium	-55 °C	125 °C	Male Pins, Plug	UL94 V-0	All	Solder	3
TE Connectivity AMP Connectors 4-1393659-7	Through Hole	R	96	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	Gold, Gold-Palladium	-55 °C	125 °C	Male Pins, Plug	UL94 V-0		Solder	3	64
TE Connectivity AMP Connectors 3-1393659-9	Through Hole	R/2 (1/2 R)	48	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	Gold, Gold-Palladium	-55 °C	125 °C	Male Pins, Plug	UL94 V-0	All	Solder	3
TE Connectivity AMP Connectors 4-1393659-5	Through Hole	R	96	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	2.54 mm	0.1 in	Gold, Gold-Palladium	-55 °C	125 °C	Male Pins, Plug	UL94 V-0	All	Solder	3
