UTS614E19S

Active

Souriau-Sunbank by Eaton

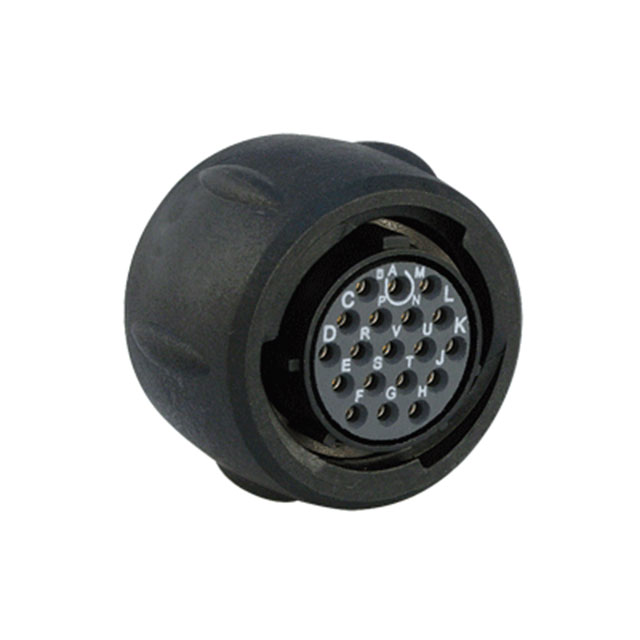

CONN PLUG FMALE 19P SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 29.35

Description

General part information

UTS61 Series

19 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UTS614E19S	UTS61 Series

Accessory Type	-	Cap (Cover), Sealing, Coding Ring, Sealing Cap
Applications	Instrumentation, Energy, Lighting, Telecommunications	Instrumentation, Energy, Lighting, Telecommunications
Color	Black	Black, Green, Red, Yellow
Connector Type	Female Sockets, Plug	Plug Housing, Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	16 Áin	16 Áin
Contact Finish Thickness - Mating	0.41 Ám	0.41 Ám
Contact Material	Brass	Brass, Copper Alloy
Contact Shape	-	Circular
Contact Size	-	8 - 20
Contact Size	-	20 (3), 16 (3), 12 (2), 20 (2), 16 (4), 12 (4)
Contact Type	-	Crimp
Current Rating (Amps)	4 A	4 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant	Coupling Nut, UV Resistant, Waterproof, Dust Tight, Contains Strap with Ring
For Use With/Related Products	-	Trim Trio® UTS Plugs, UTS Housings
Housing Color	-	Black
Ingress Protection	IP68, IP69K	IP69K, IP67, IP68
Insert Material	Polychloroprene	Polychloroprene
Material	-	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	19	2 - 23
Number of Positions	-	3
Number of Positions	-	1
Number of Positions	-	2
Number of Positions	-	2
Number of Positions	-	1
Number of Positions	-	6
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N, X, Z, W, Y
Primary Material	Plastic	Plastic
Shell Size - Insert	-	14-2, 12-3, 14-12, 10-3, 12-4, 10-6, 12-8, 10-3W3, 18-3, 14-5, 12-2, 10-4, 10-2W2, 14-8, 10-7
Shell Size - Insert	-	10 - 18
Shell Size - Insert	-	7 - 18
Shell Size - Insert	-	14 - 98
Shell Size - Insert [Max] [custom]	19	19 - 23
Shell Size - Insert [Min] [custom]	14	14 - 18
Shielding	Unshielded	Unshielded
Termination	-	Screw
Type	-	For Male Pins, For Female Sockets
Voltage Rating	250 VDC	250 - 650 V

UTS61 Series

CONN PLUG HSG MALE 3POS INLINE

...
