RG223-SMRP-SMRP(QTY:10ft)
ActiveMcGill Microwave Systems
RG223 CABLE ASSY 10 FT SMARP
RG223-SMRP-SMRP(QTY:10ft)
ActiveMcGill Microwave Systems
RG223 CABLE ASSY 10 FT SMARP
Description
General part information
RG223-SMRP-SMRP(QTY:10ft)

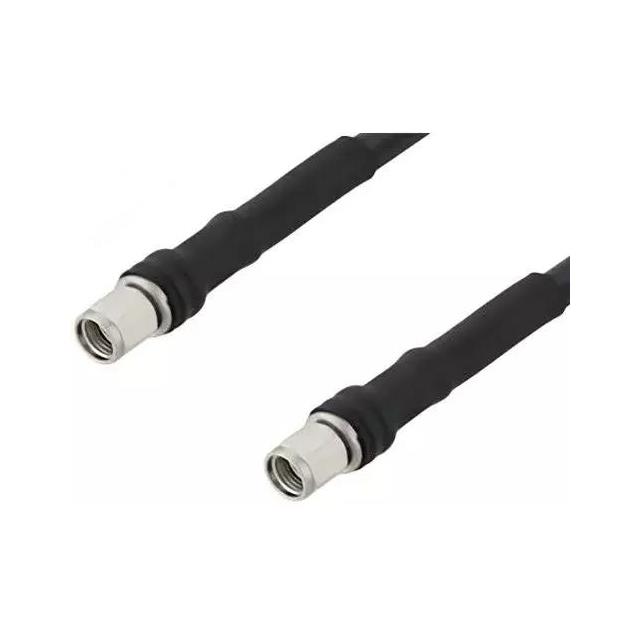

Cable Assembly Coaxial RP-SMA to RP-SMA RG-223 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG223-SMRP-SMRP(QTY:10ft) |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | RP-SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Frequency - Max | 12.4 GHz |
| Length | 120 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Style | RP-SMA |
