WAVE-35-12

Active

Wakefield-Vette

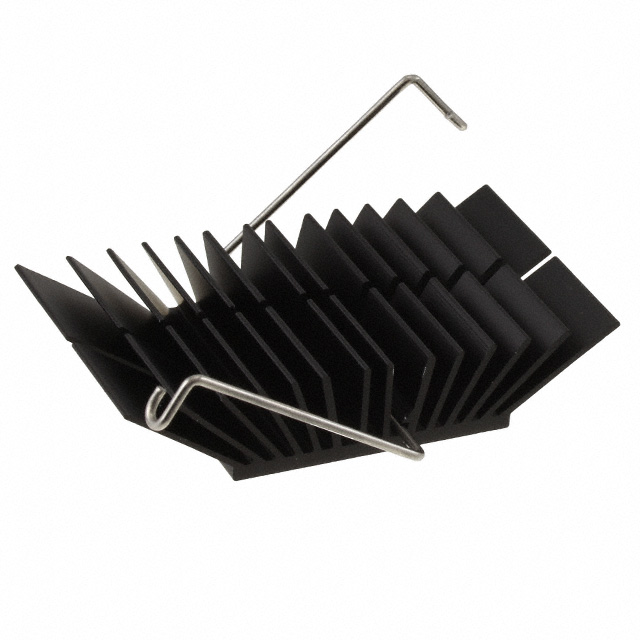

ANCHOR HEATSINK 35X35X12MM

Search across all available documentation for this part.

Active

Wakefield-Vette

ANCHOR HEATSINK 35X35X12MM

Technical Specifications

Parameters and characteristics for this part

Specification	WAVE-35-12

Attachment Method	Clip
Fin Height [z]	0.472 in
Fin Height [z]	12 mm
Length [x]	1.378 in
Length [x]	35 mm
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	3.83 °C/W, 200 LFM
Type	Board Level
Width	35 mm
Width [x]	1.378 in

Part	Material	Attachment Method	Thermal Resistance @ Forced Air Flow	Package Cooled	Width [x]	Width	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]	Material Finish	Type	Shape	Fin Height	Fin Height
Wakefield-Vette WAVE-35-12	Aluminum Alloy	Clip	3.83 °C/W 200 LFM	BGA	1.378 in	35 mm	1.378 in	35 mm	0.472 in	12 mm	Black Anodized	Board Level	Angled Fins Square
Wakefield-Vette WAVE-35-15	Aluminum Alloy	Clip	3.15 °C/W	BGA	1.378 in	35 mm	1.378 in	35 mm			Black Anodized	Board Level	Angled Fins Square	0.59 "	15 mm
Wakefield-Vette WAVE-35-21	Aluminum Alloy	Clip	2.11 °C/W 200 LFM	BGA	1.378 in	35 mm	1.378 in	35 mm			Black Anodized	Board Level	Angled Fins Square	0.827 in	21 mm
Wakefield-Vette WAVE-35-125	Aluminum Alloy	Clip	3.63 °C/W	BGA	1.378 in	35 mm	1.378 in	35 mm			Black Anodized	Board Level	Angled Fins Square	0.492 in	12.5 mm
