MHV12-470S06N

Active

Bellnix Co., Ltd.

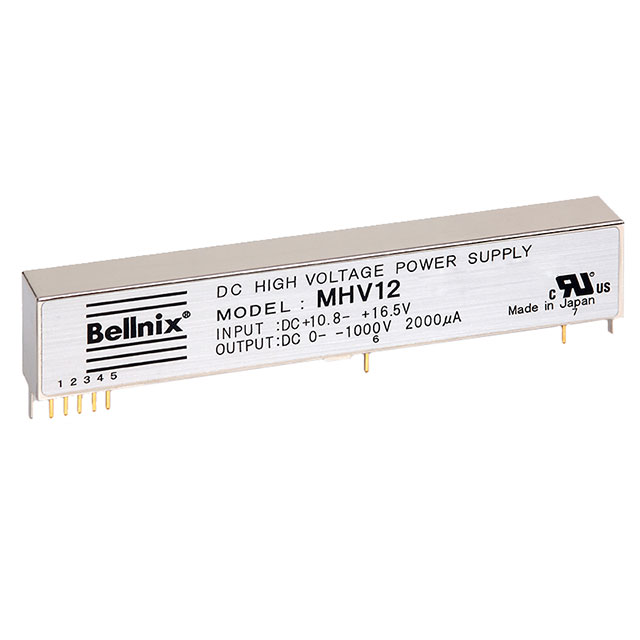

DC DC CONVERTER -470V 2.6W

Search across all available documentation for this part.

Active

Bellnix Co., Ltd.

DC DC CONVERTER -470V 2.6W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MHV12-470S06N	MHV12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	5.6 mA	2 - 5.6 mA
Features	Remote On/Off, Adjustable Output	Remote On/Off, Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	2.6 W	2 - 2.6 W
Size / Dimension [x]	110 mm	110 mm
Size / Dimension [x]	4.33 in	4.33 in
Size / Dimension [y]	0.47 "	0.47 "
Size / Dimension [y]	12 mm	12 mm
Size / Dimension [z]	0.78 in	0.78 in
Size / Dimension [z]	19.8 mm	19.8 mm
Type	High Voltage - Non-Isolated Module	High Voltage - Non-Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 - 16.5 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Output 1	-470 V	-1000 - 1000 V

DC DC CONVERTER 1000V 2W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Type	Current - Output (Max) [Max]	Applications	Control Features	Features
Bellnix Co., Ltd. MHV12-1.0K2000P	-10 °C	60 °C	10.8 V	1000 V	Through Hole	1	16.5 V	2 W	110 mm	0.78 in	4.33 in	0.47 "	19.8 mm	12 mm	High Voltage - Non-Isolated Module	2 mA	ITE (Commercial)	Active High, Enable	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. MHV12-1.0K2000N	-10 °C	60 °C	10.8 V	-1000 V	Through Hole	1	16.5 V	2 W	110 mm	0.78 in	4.33 in	0.47 "	19.8 mm	12 mm	High Voltage - Non-Isolated Module	2 mA	ITE (Commercial)	Active Low, Enable	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. MHV12-470S06P	-10 °C	60 °C	10.8 V	470 V	Through Hole	1	13.2 V	2.6 W	110 mm	0.78 in	4.33 in	0.47 "	19.8 mm	12 mm	High Voltage - Non-Isolated Module	5.6 mA	ITE (Commercial)	Active High, Enable	Adjustable Output, Remote On/Off
Bellnix Co., Ltd. MHV12-470S06N	-10 °C	60 °C	10.8 V	-470 V	Through Hole	1	13.2 V	2.6 W	110 mm	0.78 in	4.33 in	0.47 "	19.8 mm	12 mm	High Voltage - Non-Isolated Module	5.6 mA	ITE (Commercial)	Active Low, Enable	Adjustable Output, Remote On/Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 126.49

General part information

High Voltage - Non-Isolated Module DC DC Converter 1 Output -470V 5.6mA 10.8V - 13.2V Input
