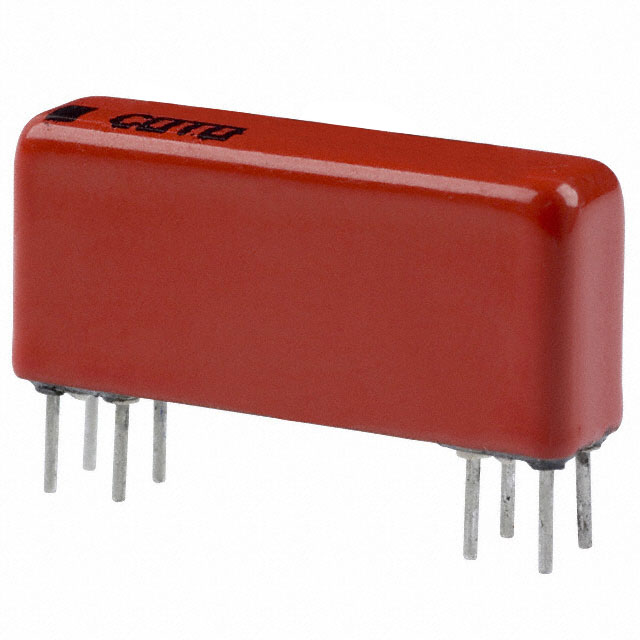

2333-12-000

Active

Coto Technology

RELAY REED 3PST 500MA 12V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED 3PST 500MA 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY REED 3PST 500MA 12V

Part	Must Release Voltage	Operate Time	Coil Type	Contact Rating (Current)	Coil Voltage	Contact Form	Termination Style	Coil Current	Must Operate Voltage	Release Time	Switching Voltage	Mounting Type	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Seal Rating
Coto Technology 2333-12-000	1 VDC	500 µs	Non Latching	0.5 A	12 VDC	3PST-NO (3 Form A)	PC Pin	12 mA	9 VDC	0.15 ms	200 VDC, 200 VAC	Through Hole	1 kOhms	85 °C	-20 C	Sealed - Hermetically
Coto Technology 2333-05-000	0.4 VDC	500 µs	Non Latching	0.5 A	5 VDC	3PST-NO (3 Form A)	PC Pin	28.6 mA	3.8 VDC	0.15 ms	200 VDC, 200 VAC	Through Hole	175 Ohms	85 °C	-20 C	Sealed - Hermetically

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED 3PST 500MA 12V
