Description
General part information

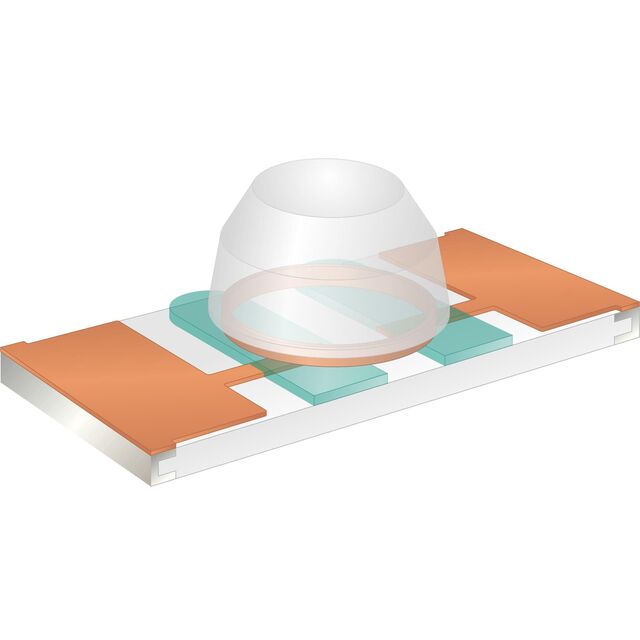

CTL1206DRD3T-CT
Red 624nm LED Indication - Discrete 2.0V 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CTL1206DRD3T-CT |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 1.95 mm |
| Lens Color | Colorless |
| Lens Length | 1.62 mm |
| Lens Style | Domed Top, Rectangle |
| Lens Transparency | Clear |
| Lens Width | 1.6 mm |
| Millicandela Rating | 2850 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 (3216 Metric) |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 1.6 mm |
| Viewing Angle | 20 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 624 nm |
| Wavelength - Peak | 632 nm |
