HD-7605
ActiveBUD INDUSTRIES

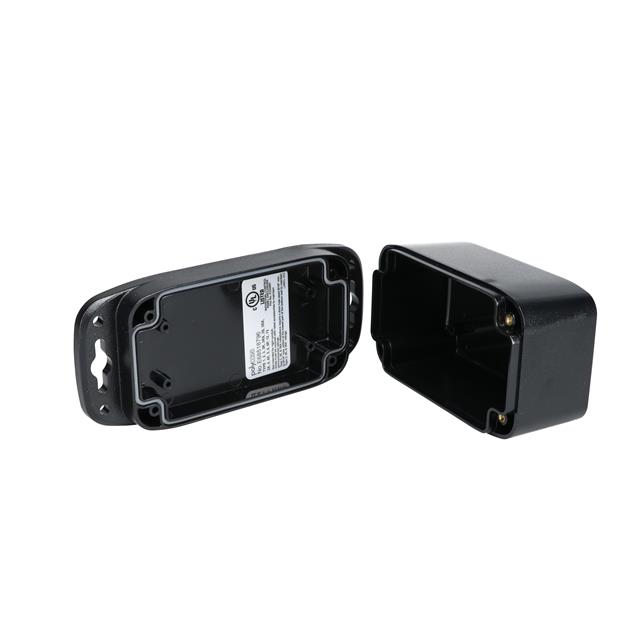

PLASTIC ENCLOSURE, HEAVY DUTY, WALL MOUNT, POLYCARBONATE, 60.2 MM, 66.8 MM, 117.6 MM
HD-7605
ActiveBUD INDUSTRIES
PLASTIC ENCLOSURE, HEAVY DUTY, WALL MOUNT, POLYCARBONATE, 60.2 MM, 66.8 MM, 117.6 MM
Description
General part information
HD-7605
Box Plastic, Polycarbonate Black Cover Included 4.710" L x 2.680" W (119.63mm x 68.07mm) X 2.380" (60.45mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | HD-7605 |
|---|---|
| Area (L x W) | 12.5 in² |
| Color | Black |
| Container Type | Box |
| Design | Cover Included |
| Height | 2.38 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 5VA |
| Material Flammability Rating - Code | UL94 |
| Material Flammability Rating - Level | 5 |
| Ratings | 4, 6P, 2, NEMA 1, 12, 13, 6, UL-508, IP68, 4X |
| Size / Dimension Length | 4.71 in |
| Size / Dimension Width | 2.68 in |
| Thickness | 0.14 in |
