PE51212

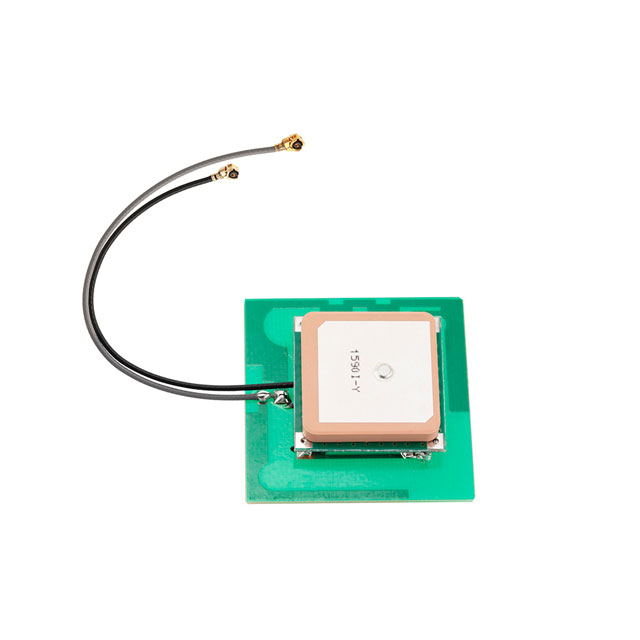

RF ANTENNA GPS, GNSS Ceramic Patch U.FL (UMCX), IPEX (2)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE51212 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GNSS, GPS |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 1.588GHz, 892MHz, 1.955GHz |
| Frequency (Center/Band) - 1 | 892 MHz |
| Frequency (Center/Band) - 2 | 1.588 GHz |
| Frequency (Center/Band) - 3 | 1.955 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 1.602 GHz |
| Frequency Range (Band 2) Minimum | 1.575 GHz |
| Frequency Range (Band 3) Maximum | 2.2 GHz |
| Frequency Range (Band 3) Minimum | 1.71 GHz |
| Gain | 2 dBi, 5 dBi, 3 dBi |
| Height (Max) | 0.039 in |
| Number of Bands | 3 |
| RF Family/Standard | Navigation, Cellular |
| Termination | U.FL (UMCX), IPEX (2), I-PEX (2) |
| VSWR | 2.5, 2 |
| VSWR Maximum | 2.5 |
| VSWR Minimum | 2 |
