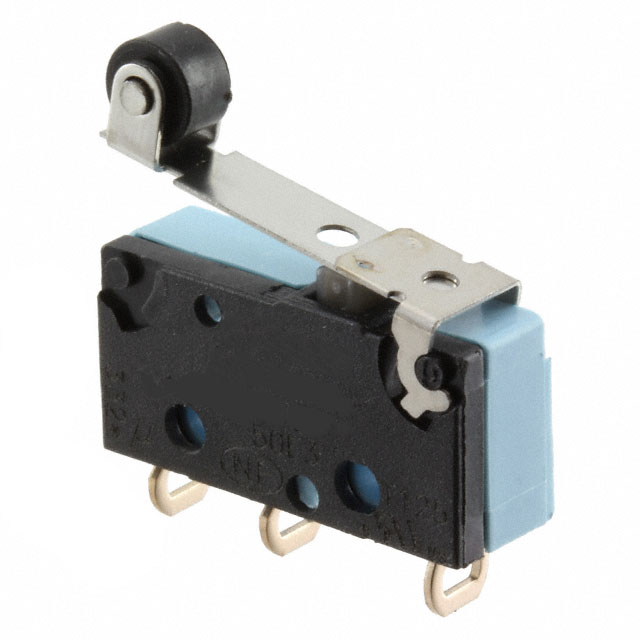

831704C2.EL

Active

Crouzet

SWITCH SNAP ACTION SPDT 5A 250V

Search across all available documentation for this part.

Active

Crouzet

SWITCH SNAP ACTION SPDT 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACTION SPDT 5A 250V

Part	Overtravel	Overtravel	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Operating Force	Actuator Type	Differential Travel	Differential Travel	Mechanical Life	Current Rating (Amps)	Mounting Type	Release Force	Voltage Rating - AC	Termination Style	Operating Position	Operating Position
Crouzet 831704C2.EL	1.5 mm	0.06 "	On-Mom	-20 C	130 °C	SPDT	20 gf	Lever, Roller	0.018 in	0.45 mm	30000000 Cycles	5 A	Chassis Mount	3.5 gf	250 V	Solder Lug	15.4 mm	0.606 in
Crouzet 83170437	1.5 mm	0.06 "	On-Mom	-20 C	130 °C	SPDT	20 gf	Lever, Straight	0.018 in	0.45 mm	30000000 Cycles	5 A	Chassis Mount	3.5 gf	250 V	Solder Lug	10.4 mm	0.409 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1104	$ 5.02

General part information

Switch SPDT Chassis Mount
