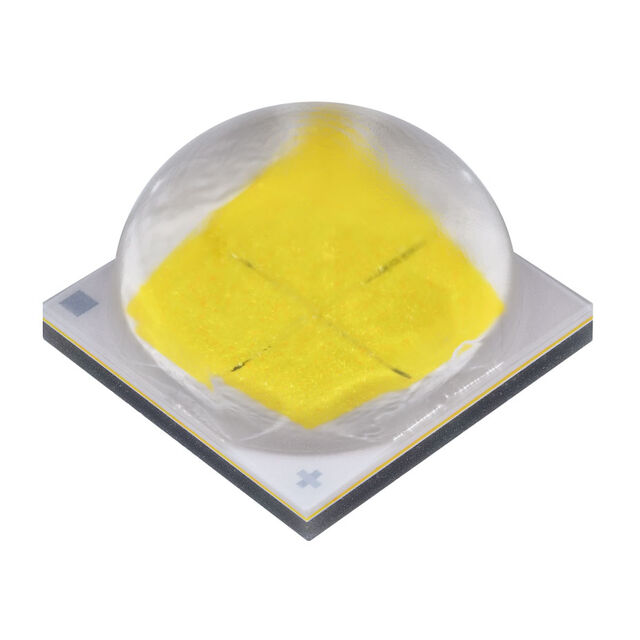

XHP70D-00-0000-0D0HM440G
ActiveCree LED
LED XLAMP NEUTRAL WHT 4000K 2828
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XHP70D-00-0000-0D0HM440G
ActiveCree LED
LED XLAMP NEUTRAL WHT 4000K 2828
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XHP70D-00-0000-0D0HM440G |
|---|---|
| CCT (K) | 4000 K |
| Color | Neutral, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 3.6 A |
| Current - Test | 1.05 A |
| Flux @ 85°C, Current - Test | 1538 lm |
| Flux @ 85°C, Current - Test [Max] | 1590 lm |
| Flux @ 85°C, Current - Test [Min] | 1485 lm |
| Height - Seated (Max) [Max] | 0.182 in |
| Height - Seated (Max) [Max] | 4.62 mm |
| Lumens/Watt @ Current - Test | 131 lm/W |
| Mounting Type | Surface Mount |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [y] | 7 mm |
| Size / Dimension [y] | 0.276 in |
| Supplier Device Package | 2828 |
| Thermal Resistance of Package [custom] | 0.2 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 11.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 8.09 | |
Description
General part information
XHP70D-00-0000-0D0HM440G
LED Lighting XLamp® XHP70.3 White, Neutral 4000K 3-Step MacAdam Ellipse 11.2V 1.05A 120° 2828 (7070 Metric)
