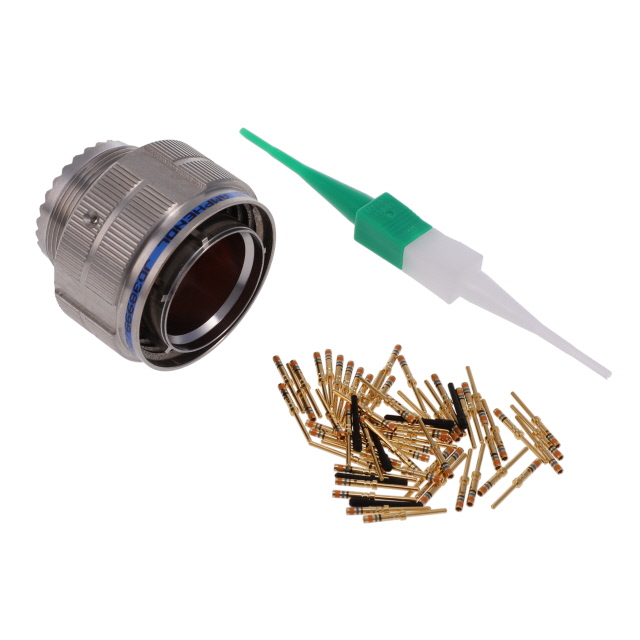

D38999/26KE35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 55POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG MALE 55POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26KE35PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Coupling Nut, Firewall Usage
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	55 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Material	Stainless Steel
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp

Part	Features	Shell Size, MIL	Primary Material	Applications	Color	Termination	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Qualification	Mounting Type	Contact Finish - Mating	Grade	Orientation	Number of Positions	Shell Material	Connector Type	Contact Material	Ingress Protection
Amphenol Aerospace Operations D38999/26KE35PN	Coupling Nut Firewall Usage	E	Metal	Aerospace Aviation Marine Military	Silver	Crimp	17	35	1.27 µm	50 µin	5 A	-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III	Free Hanging (In-Line)	Gold	Military	N	55 positions	Stainless Steel	Male Pins Plug	Copper Alloy	Environment Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

55 Position Circular Connector Plug, Male Pins Crimp
