Description
General part information
30-02126

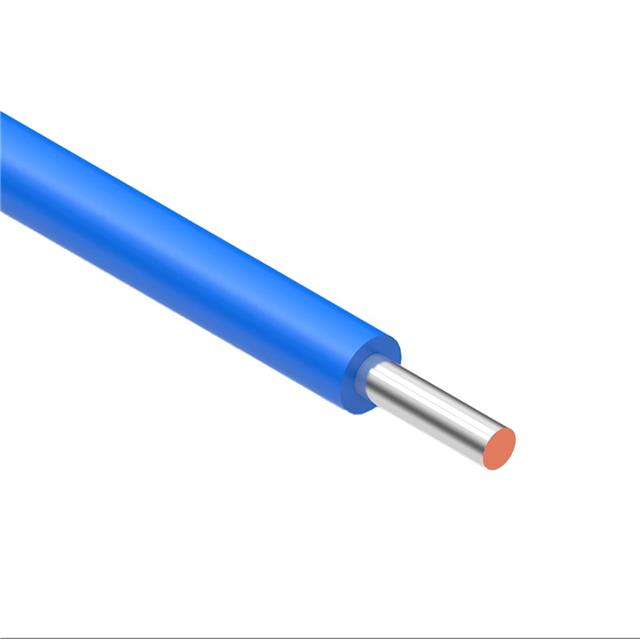

30 AWG Hook-Up Wire Solid Blue 600V 1000.7' (305.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-02126 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand | Solid |
| Jacket (Insulation) Diameter | 0.031 in |
| Jacket (Insulation) Material | Modified (mPPE), Polyphenylene Ether |
| Jacket (Insulation) Thickness | 0.01 in |
| Jacket Color | Blue |
| Length | 1000.7 ft |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | Style, 11028, UL |
| Voltage | 600 V |
| Wire Gauge | 30 AWG |
