Description
General part information
6073635

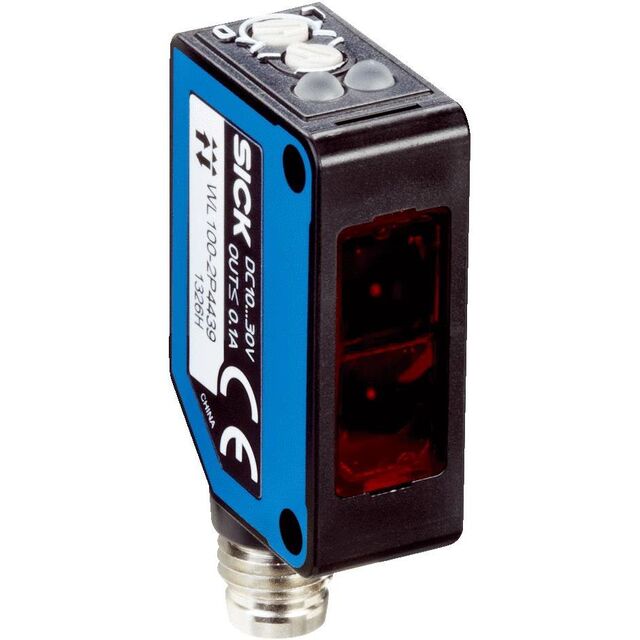

Retroreflective Optical Sensor 0.394" ~ 283.465" (10mm ~ 7.2m) PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 6073635 |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 632 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Response Time | 500 µs |
| Sensing Distance Maximum | 283.465 " |
| Sensing Distance Minimum | 0.394 " |
| Sensing Method | Retroreflective |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
