7-1393740-0

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 9POS VERT SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 9POS VERT SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

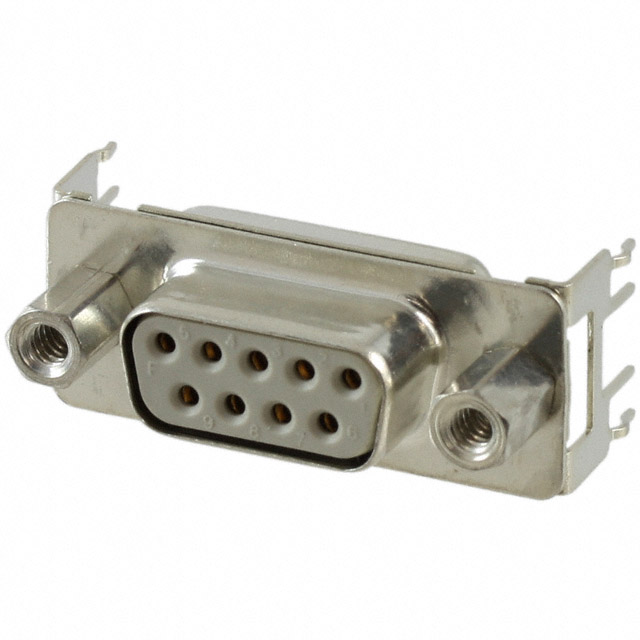

9 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	7-1393740-0	1393740 Series

Color	Gray	Gray
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester	Polybutylene Terephthalate (PBT), Polyester
Features	Ground Strap	Grounding Indents, Ground Strap
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side, Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Free Hanging (In-Line)
Number of Positions	9	9 - 50
Number of Rows	2	2 - 3
Shell Size, Connector Layout	-	2 - 5
Shell Size, Connector Layout [custom]	DE, E	DB, B, DE, E
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Solder	Solder

CONN D-SUB PLUG 25POS VERT SLDR

Part	Contact Finish	Contact Type	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Material Flammability Rating	Contact Material	Color	Number of Rows	Flange Feature	Mounting Type	Dielectric Material	Connector Type	Connector Style	Number of Positions	Shell Size, Connector Layout
TE Connectivity AMP Connectors 8-1393740-0	Gold	Signal	Solder	B, DB	3	Ground Strap, Grounding Indents	UL94 V-0	Phosphor Bronze	Gray	2	Female Screwlock (4-40), Mating Side	Through Hole	Polybutylene Terephthalate (PBT), Polyester	Male Pins, Plug	D-Sub
TE Connectivity AMP Connectors 7-1393740-2	Gold	Signal	Solder	B, DB	3					2		Through Hole		Receptacle, Female Sockets	D-Sub
TE Connectivity AMP Connectors 7-1393740-9	Gold	Signal	Solder			Ground Strap, Grounding Indents	UL94 V-0	Phosphor Bronze	Gray	2	Female Screwlock (4-40), Mating Side	Through Hole	Polybutylene Terephthalate (PBT), Polyester	Male Pins, Plug	D-Sub	15	2
TE Connectivity AMP Connectors 7-1393740-1	Gold	Signal	Solder							2		Through Hole		Receptacle, Female Sockets	D-Sub	15	2
TE Connectivity AMP Connectors 7-1393740-0	Gold	Signal	Solder	DE, E	1	Ground Strap	UL94 V-0	Phosphor Bronze	Gray	2	Female Screwlock (4-40), Mating Side	Through Hole	Polybutylene Terephthalate (PBT), Polyester	Receptacle, Female Sockets	D-Sub	9
TE Connectivity AMP Connectors 1-1393740-0	Gold	Signal				Grounding Indents				3	Housing/Shell (Unthreaded)	Free Hanging (In-Line)		Male Pins, Plug	D-Sub	50	5
