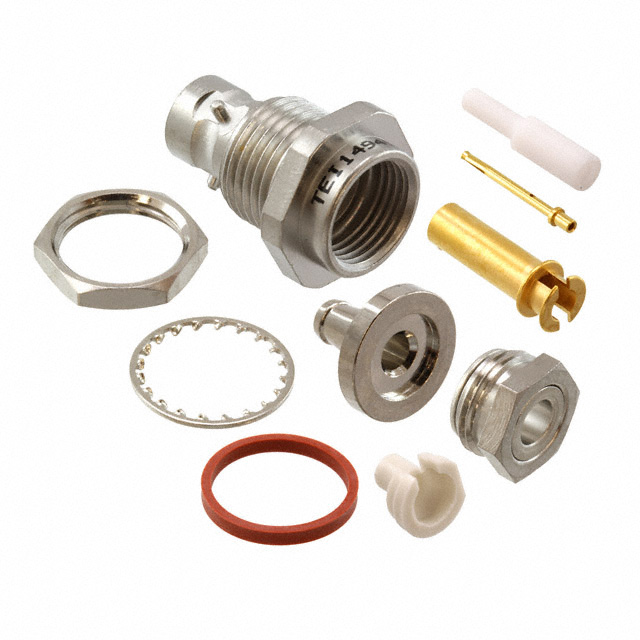

BJ159-47

Active

Cinch Connectivity Solutions Trompeter

CONN TRS JACK STR SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRS JACK STR SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BJ159-47	BJ159 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	M17/176-00002	M17/176-00002, TRC-75-2
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	TRS, Twinaxial/Triaxial	TRS, Twinaxial/Triaxial
Connector Type	Female Socket (Concentric), Jack	Female Socket (Concentric), Jack
Contact Termination	Solder	Solder, Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Three Lug	Three Lug, Four Lug
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher, 1 Heat Shrink, 1 Washer, Connector, Washer, Nut
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Ports	1	1
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Wrench Clamp	Wrench Clamp, Crimp
Voltage Rating	400 V	400 V

CONN TRS JACK STR SOLDER

Part	Body Material	Includes	Mating Cycles	Fastening Type	Cable Group	Mounting Feature	Center Contact Plating	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Impedance	Shield Termination	Frequency - Max [Max]	Connector Type	Center Contact Material	Voltage Rating	Contact Termination	Connector Style	Body Finish	Number of Ports
Cinch Connectivity Solutions Trompeter BJ159-47	Brass	1 Connector, 1 Lockwasher, 1 Nut	500	Bayonet Lock	M17/176-00002	Bulkhead - Front Side Nut	Gold	Silver	-65 ░C	200 °C	Three Lug	Non-Constant	Wrench Clamp	500 MHz	Female Socket (Concentric), Jack	Beryllium Copper	400 V	Solder	TRS, Twinaxial/Triaxial	Nickel	1
Cinch Connectivity Solutions Trompeter BJ159AC-308	Brass	1 Connector, 1 Heat Shrink, 1 Nut, 1 Washer	500	Bayonet Lock	TRC-75-2	Bulkhead - Front Side Nut	Gold	Silver	-65 ░C	200 °C	Three Lug	Non-Constant	Crimp	500 MHz	Female Socket (Concentric), Jack	Beryllium Copper	400 V	Crimp	TRS, Twinaxial/Triaxial	Nickel	1
Cinch Connectivity Solutions Trompeter BJ159FL-47	Brass	Connector, Nut, Washer	500	Bayonet Lock	M17/176-00002	Bulkhead - Front Side Nut	Gold	Silver	-65 ░C	200 °C	Four Lug	Non-Constant	Wrench Clamp	500 MHz	Female Socket (Concentric), Jack	Beryllium Copper	400 V	Solder	TRS, Twinaxial/Triaxial	Nickel	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRS, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Solder
