1016-1
ActiveKeystone Electronics

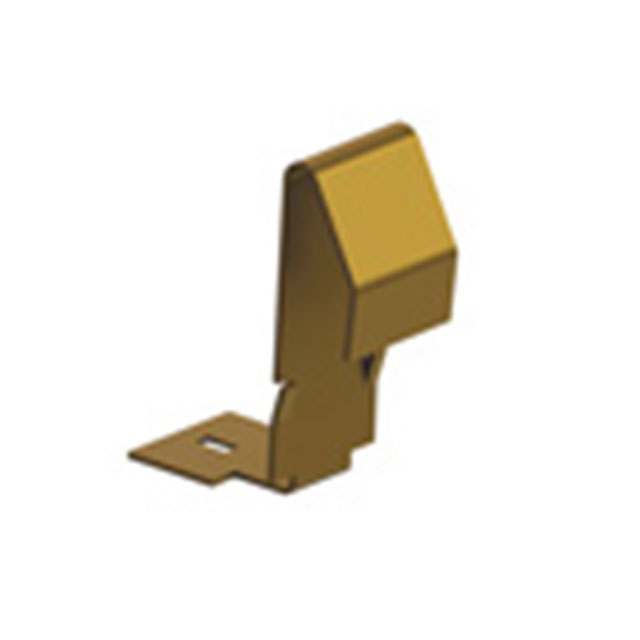

BATT CONTACT SPRING MULTIPLE SMD
1016-1
ActiveKeystone Electronics
BATT CONTACT SPRING MULTIPLE SMD
Description
General part information
1016-1
Battery Contact Spring (Leaf) Multiple 1 Cell SMD (SMT) Tab
Technical Specifications
Parameters and characteristics for this part
| Specification | 1016-1 |
|---|---|
| Battery Cell Size | Multiple, AA, CR2, A |
| Battery Cell Size Maximum | 19 mm |
| Battery Cell Size Minimum | 17 mm |
| Battery Type | Cylindrical |
| Function | Contact (Single) |
| Height Above Board | 0.585 in |
| Mounting Type | Surface Mount, PCB |
| Number of Cells | 1 |
| Operating Temperature (Max) | 145 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Contact Spring (Leaf) |
| Termination Style | SMD (SMT) Tab |
