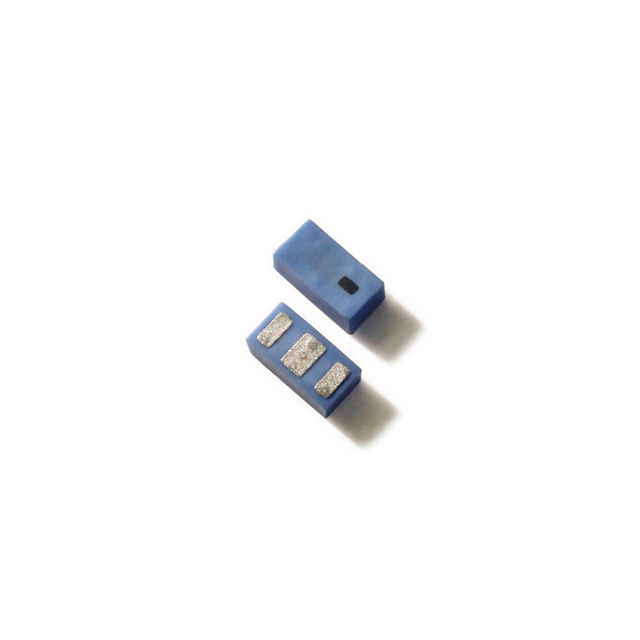

RFBPF1608060K68Q1C
ActiveWalsin Technology Corporation
RF FILTER BANDPASS 5.425GHZ 0603
RFBPF1608060K68Q1C
ActiveWalsin Technology Corporation
RF FILTER BANDPASS 5.425GHZ 0603
Description
General part information
RFBPF1608060K68Q1C
5.425GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1.05GHz Bandwidth 1.3dB 0603 (1608 Metric), 3 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | RFBPF1608060K68Q1C |
|---|---|
| Bandwidth | 1.05 GHz |
| Filter Type | Band Pass |
| Frequency (Center) | 5.425 GHz |
| Height (Max) | 0.028 in |
| Insertion Loss | 1.3 dB |
| Mounting Type | Surface Mount |
| Package Name | 0603 |
| Pad Count | 3 PC Pad |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.032 in, 0.031 in |
