SM4575

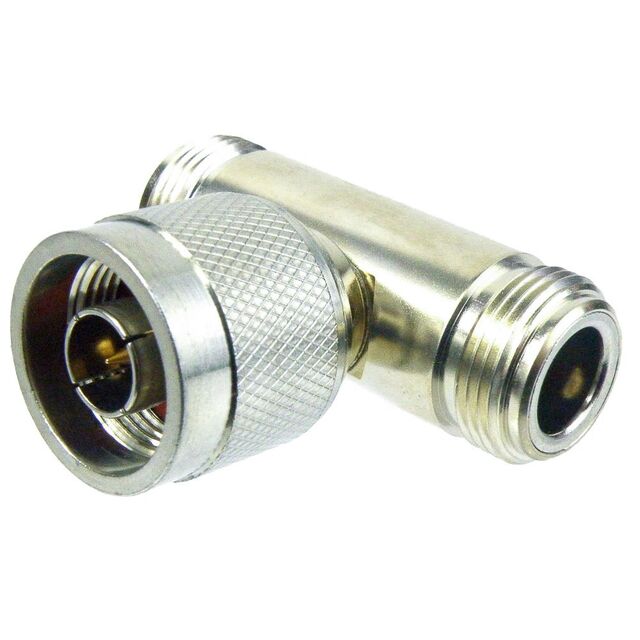

Adapter Coaxial Connector N Plug, Male Pin To N Jack, Female Socket (2) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4575 |
|---|---|
| Adapter Series | N to N, Dual |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Plug, Male Pin |
| Convert To (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Count | 2 count |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | T-Shape |
