Description
General part information
K50PTCAMGRY3AQ

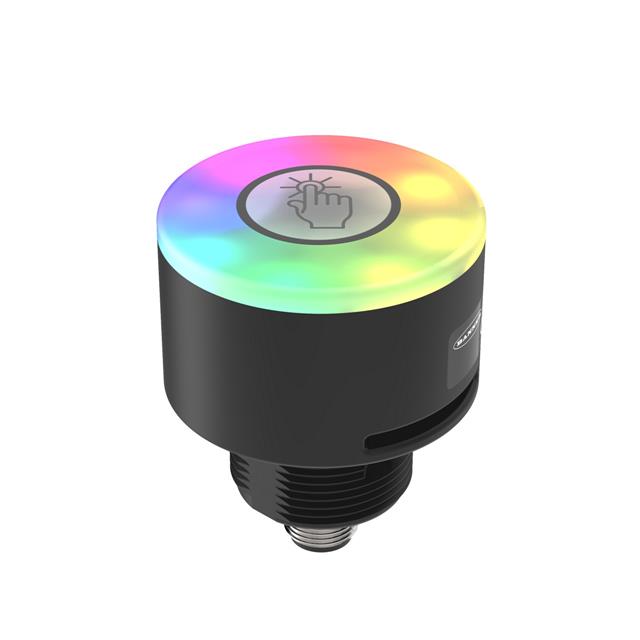

K50 PRO COMPACT TOUCH: 3-COLOR RGB TOUCH SENSOR WITH AUDIBLE
Technical Specifications
Parameters and characteristics for this part
| Specification | K50PTCAMGRY3AQ |
|---|---|
| Actuator Type | Button, Round, Domed |
| Approval Agency | CE |
| Circuit | SPST-NO |
| Color | Multicolor |
| Illumination Type | LED |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 50 mm |
| Panel Cutout Shape | Circular |
| Response Time | 300 ms |
| Switch Function | Off-Mom |
| Termination Style | Connector (M12) |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
